The HSCo coil weighing scale PLCHQC is a low-profile floor platform with two cradle rails that hold round loads steady: steel and aluminium coils, cable and wire drums, and paper reels. It comes in 1 to 10 tonne capacities and standard platforms from 1 × 1 m to 1.5 × 1.5 m, with a ramp-type structure for easy loading and four IP68 load cells.
Why metal and cable plants choose it
- Holds coils steady. Cradle rails stop round loads rolling while they are weighed.
- Easy loading. A low-profile, ramp-type platform lets coils be placed and removed quickly.
- Built for impact. A heavy-duty MS chequered-plate top (SS top available) that takes rough handling.
- Sealed load cells. Four IP68 load cells, corner-load tested.
- Protected electronics. Overload and shock-load protection, with low-battery indication.
- Connects to your systems. Printer, RS232, USB, Wi-Fi and Bluetooth options.

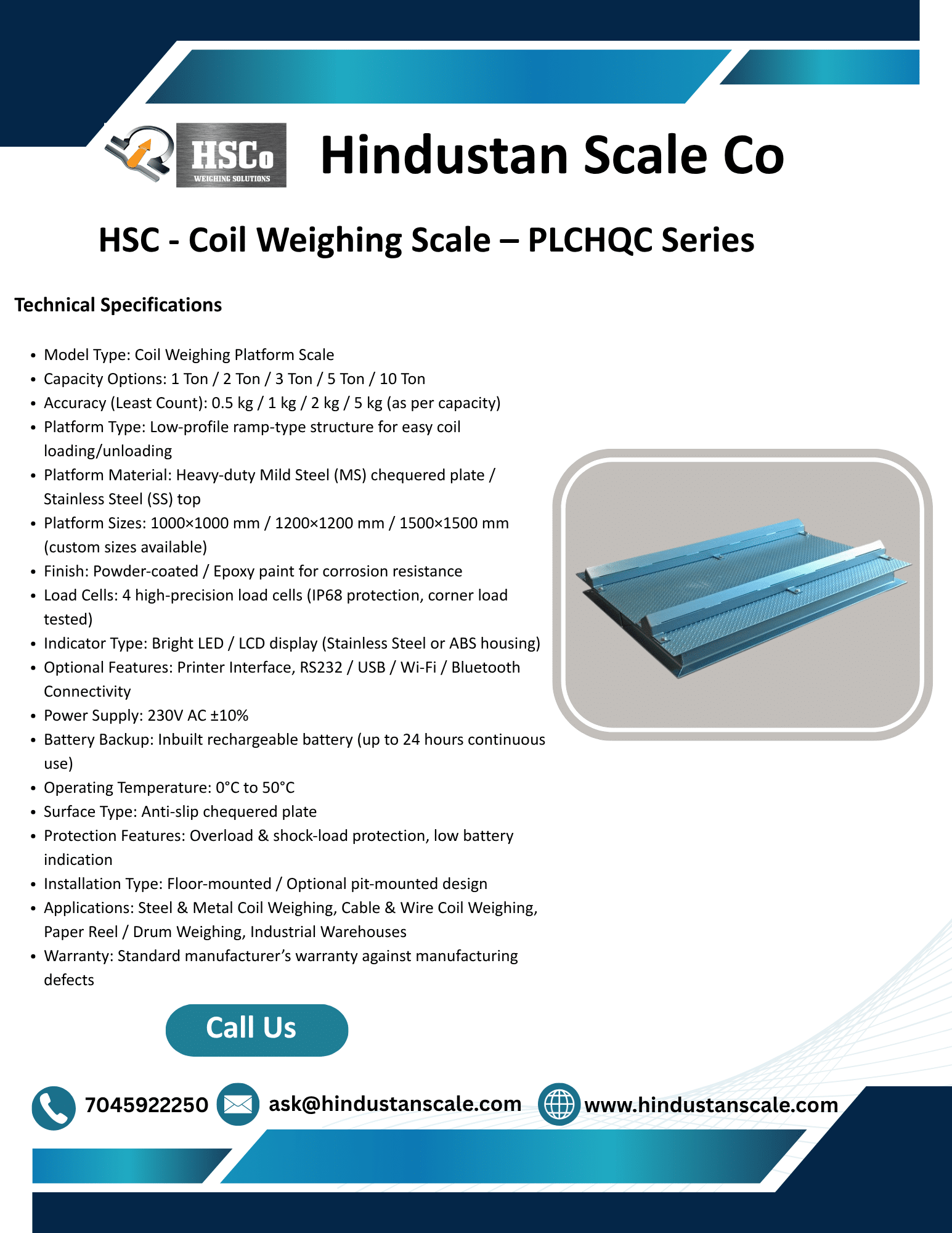

Specifications
| Model | PLCHQC series |
|---|---|
| Capacities | 1, 2, 3, 5, 10 t |
| Least count | 0.5 / 1 / 2 / 5 kg, depending on capacity |
| Platform sizes | 1000 × 1000, 1200 × 1200, 1500 × 1500 mm; custom sizes available |
| Platform | Low-profile ramp type; MS chequered plate or SS top; anti-slip |
| Finish | Powder coating or epoxy paint |
| Load cells | 4, IP68, corner-load tested |
| Indicator | Bright LED or LCD, stainless-steel or ABS housing |
| Power | 230 V AC ±10%; built-in rechargeable battery, up to 24 hours |
| Operating temperature | 0 – 50 °C |
| Installation | Floor-mounted; pit-mounted optional |
| Options | Printer, RS232, USB, Wi-Fi, Bluetooth |
Where it is used
Steel plants and rolling mills, coil dispatch and quality control, aluminium and sheet-metal processing, cable and wire drum weighing, paper reel and drum weighing, and industrial warehouses. Compare all platform scales.
Questions buyers ask
1, 2, 3, 5 and 10 tonnes.
1 × 1 m, 1.2 × 1.2 m and 1.5 × 1.5 m as standard, and custom sizes.
Yes. It is floor-mounted as standard, with a pit-mounted option.
Yes, any round load that sits in the cradle rails.
Order or ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your heaviest coil, coil width and diameter, and whether you need a pit. Hindustan Scale Company, Mumbai, since 1955.
