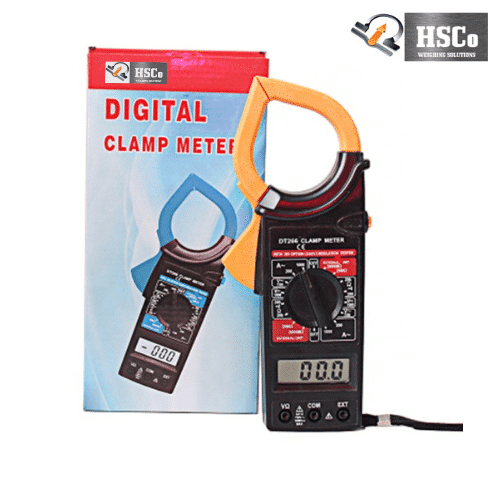

The HSCo digital clamp meter (DT266 type) measures current by clamping its jaw around a live conductor, with no need to break the circuit; with its test leads it also checks continuity. Its jaw opens to 57 mm, the LCD reads up to 1999, and it has data hold, a continuity buzzer, an external mV input, overload protection and a low-battery warning. It runs on one 9 V battery and comes with a carrying bag and test leads.
Why electricians choose it
- Clamp-on current measurement: 57 mm jaw.
- Data hold to keep a reading.
- Continuity buzzer for quick checks.
- External mV input.
- Protected: overload protection and low-battery indication.
- Ready to use: test leads, battery and carrying bag included.
Specifications
| Type | Digital clamp meter (DT266 type) |
|---|---|
| Display | LCD, 49 × 16 mm; maximum reading 1999 |

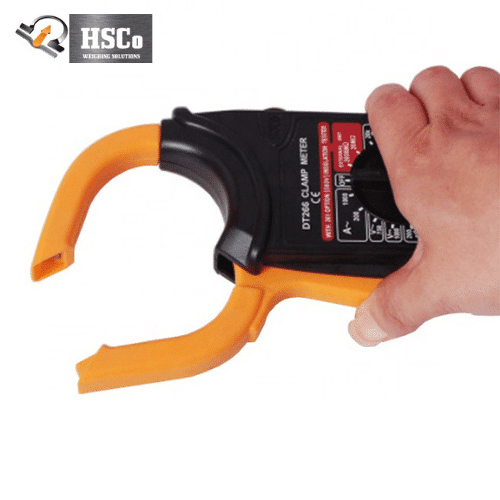

| Jaw opening | Ø 57 mm |
| Functions | Data hold; continuity buzzer; external mV input terminal |
| Protection | Overload protection; low-battery indication |
| Power | One 9 V battery (6F22) |
| Size / weight | 230 × 68 × 37 mm / about 202 g without battery |

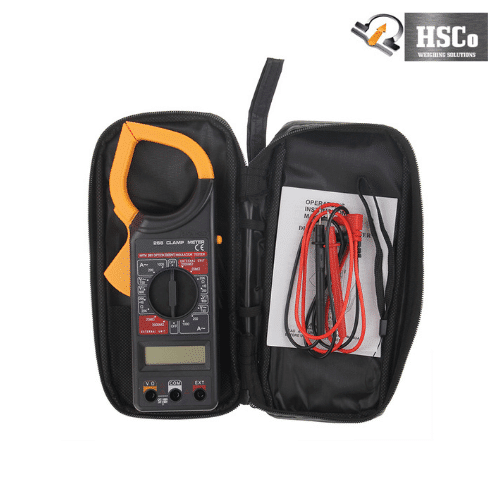

| Supplied with | Meter, carrying bag, test leads, battery, manual |
| Warranty | 1 year |
Related
Browse all electric measures.
Where it is used
Electrical maintenance and fault finding: measuring current and checking circuits.
Questions buyers ask
Do I need to cut the wire to measure current?
No. Clamp the jaw around one conductor and read the current.
What battery does it use?
One 9 V battery (6F22), included.
What comes in the box?
The meter, test leads, a battery, a carrying bag and the manual.
