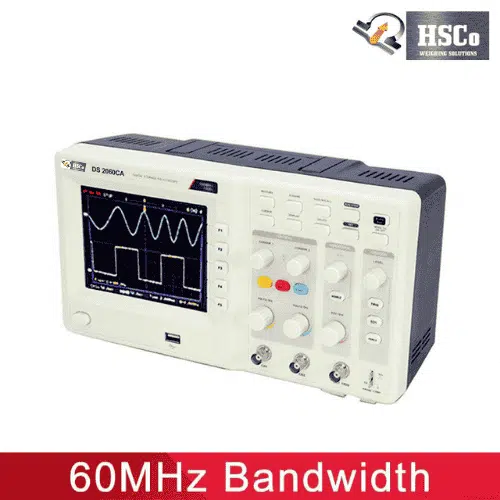

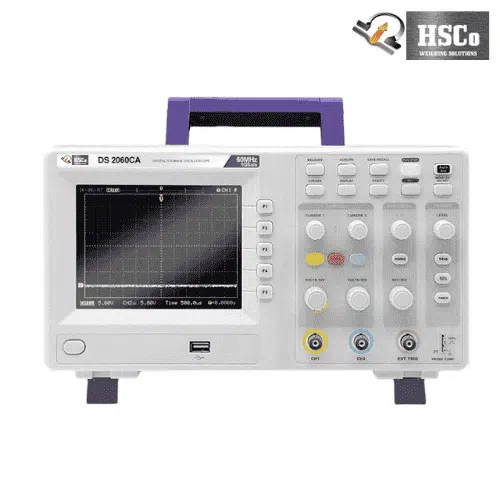

The HSCo DS2060CA is a two-channel digital storage oscilloscope with 60 MHz bandwidth and a 1 GS/s real-time sampling rate. It triggers on edge, pulse width, video or alternate signals, shows Y-T and X-Y modes at the same time, and displays waveforms on a 320 × 240 screen. It has a USB port, runs on AC 220 V (110 V optional), with probes as pictured.
Why labs choose it
- 60 MHz bandwidth, 1 GS/s real-time sampling.
- Two analog channels.
- Four trigger types: edge, pulse width, video, alternate.
- Y-T and X-Y modes at the same time.
- USB port on the front and back.
Specifications
| Model | DS2060CA (label) |
|---|---|
| Type | Digital storage oscilloscope |
| Bandwidth | 60 MHz |
| Sampling rate | 1 GS/s real time |
| Channels | 2 analog |
| Triggers | Edge, pulse width, video, alternate |
| Modes | Y-T and X-Y at the same time |
| Display | 320 × 240, mono or colour |

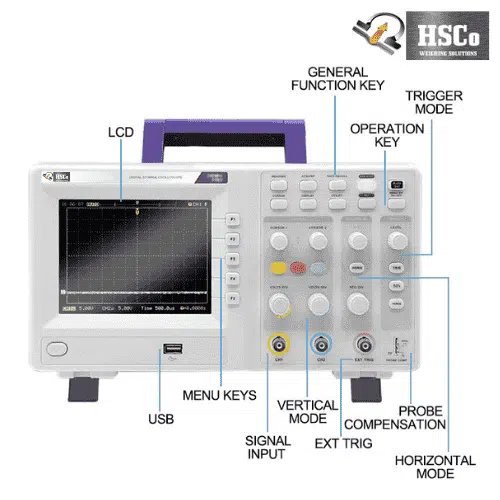

| Ports | USB; BNC inputs for CH1, CH2 and external trigger |

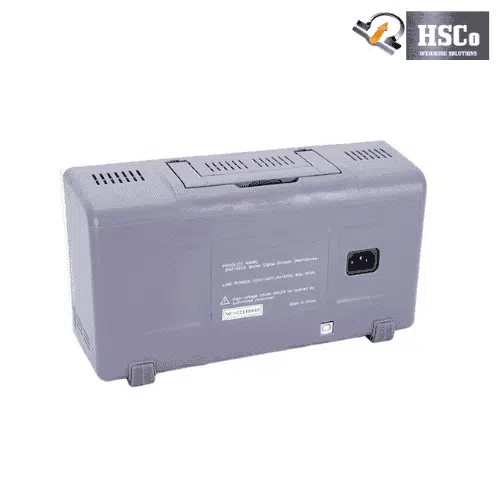

| Power | AC 220 V (110 V optional) |

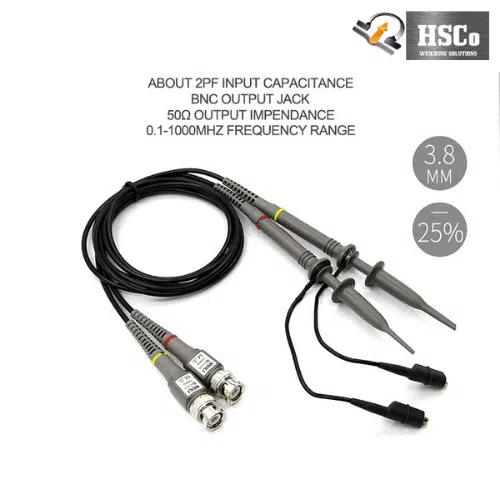

| Probes | As pictured |
| Warranty | 1 year |
Which instrument?
Browse all electric measures.
Where it is used
Viewing and measuring electronic signals.
Questions buyers ask
How fast is it?
60 MHz bandwidth with a 1 GS/s real-time sampling rate.
How many channels?
Two analog channels.
Can it show X-Y plots?
Yes. It shows Y-T and X-Y modes at the same time.
