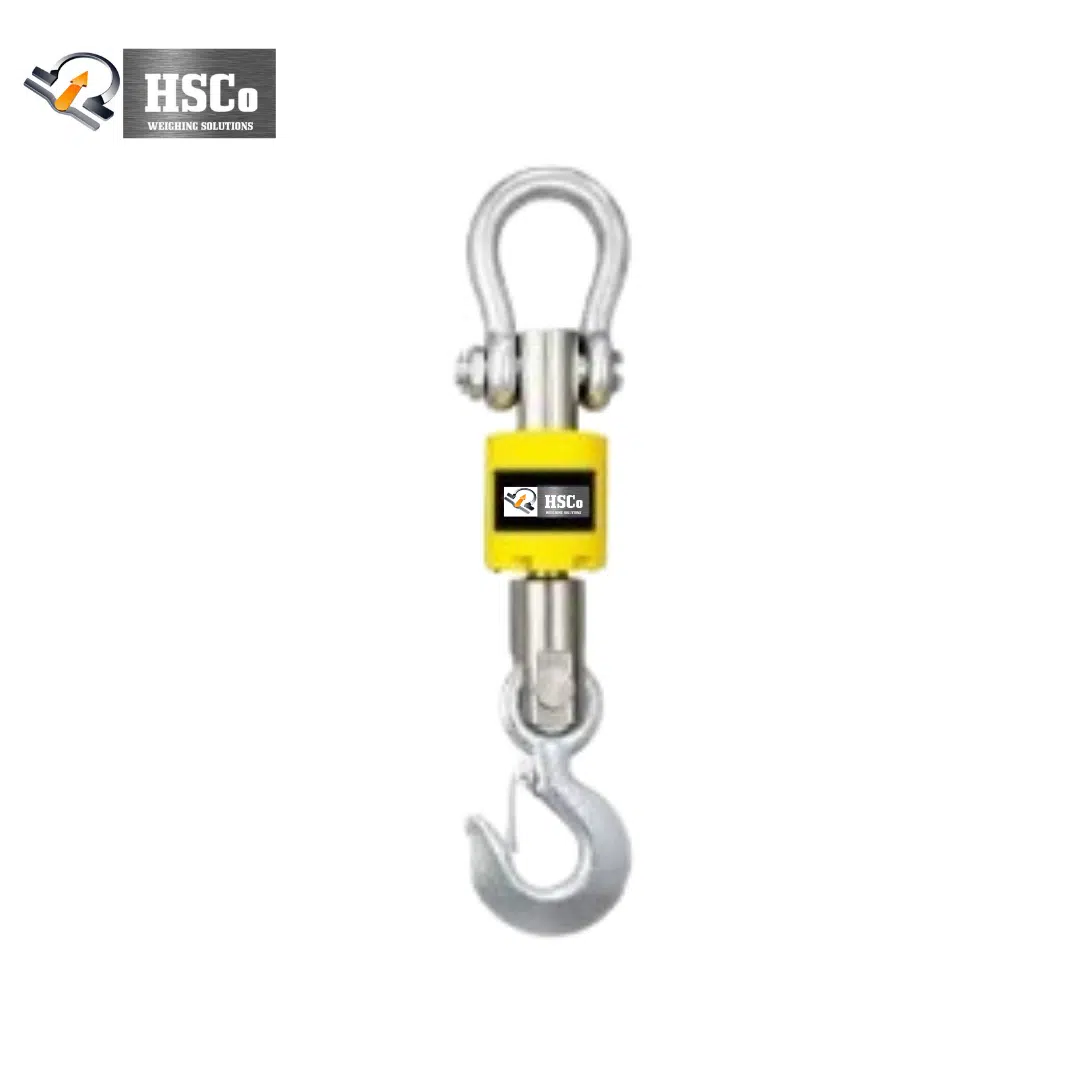

The HSCo CRHLC series is a heavy-duty electronic dynamometer (crane scale) for 3 to 20 tonne loads. A shackle at the top and a safety hook below carry the load through a die-cast aluminium body, and a bright LED display shows the weight, while a 40-hour battery keeps it running through long shifts. It is used for crane load checks, lifting and rigging, steel plants, docks and heavy industry.
Why buyers choose the CRHLC
- Strong and light. A die-cast aluminium body with a 90+ micron coating against rust and corrosion.
- Long battery life. Up to 40 hours on a charge, running on AC 230 V or DC 9 V, with sleep mode to save power.
- Accurate on moving loads. A stability chip for swinging loads, with auto zero tracking and auto calibration.
- Easy to read. A bright LED display, clear in all conditions.
- Grows with you. Optional handheld display, remote or jumbo display, printer and Bluetooth.
Specifications
| Capacities | 3,000, 5,000, 10,000, 20,000 kg |
|---|---|
| Accuracy options | 1 kg, 2 kg or 5 kg (choose above) |
| Body | Die-cast aluminium, 90+ micron coating |
| Rigging | Shackle top, safety hook bottom; double J hook optional |
| Display | Bright LED |
| Functions | Tare, zero, auto zero tracking, auto calibration, power saving, sleep mode |
| Power | AC 230 V / DC 9 V; battery backup up to 40 hours |
| Load cell overload | 200% |
| Warranty | 1 year |
Options
| Handheld display | Stores up to 30,000 records, custom print formats, thermal printer, range up to 30 m |
|---|---|
| Remote display | Green 20 mm LED, range up to 200 m |
| Jumbo display | Red or green 4-inch LED, range up to 20 m, all-weather housing |
| Handheld remote with jumbo display | Built-in printer and USB |
| Other | Desktop printer, Bluetooth, double J hook |
Where it is used
Steel industries, construction, crane testing, docks and naval use, timber, and heavy engineering. Read how to choose a crane scale, see the wireless dynamometer up to 100 t, or browse all crane scales.
Questions buyers ask
3, 5, 10 and 20 tonnes.
Up to 40 hours on a full charge.
Yes, with the optional handheld, remote or jumbo display.
Yes, with the handheld display’s thermal printer or a desktop printer.
Die-cast aluminium with a thick protective coating.
Order or ask for a quotation
Choose the capacity and accuracy above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with your lifting setup and display options. Hindustan Scale Company, Mumbai, since 1955.
