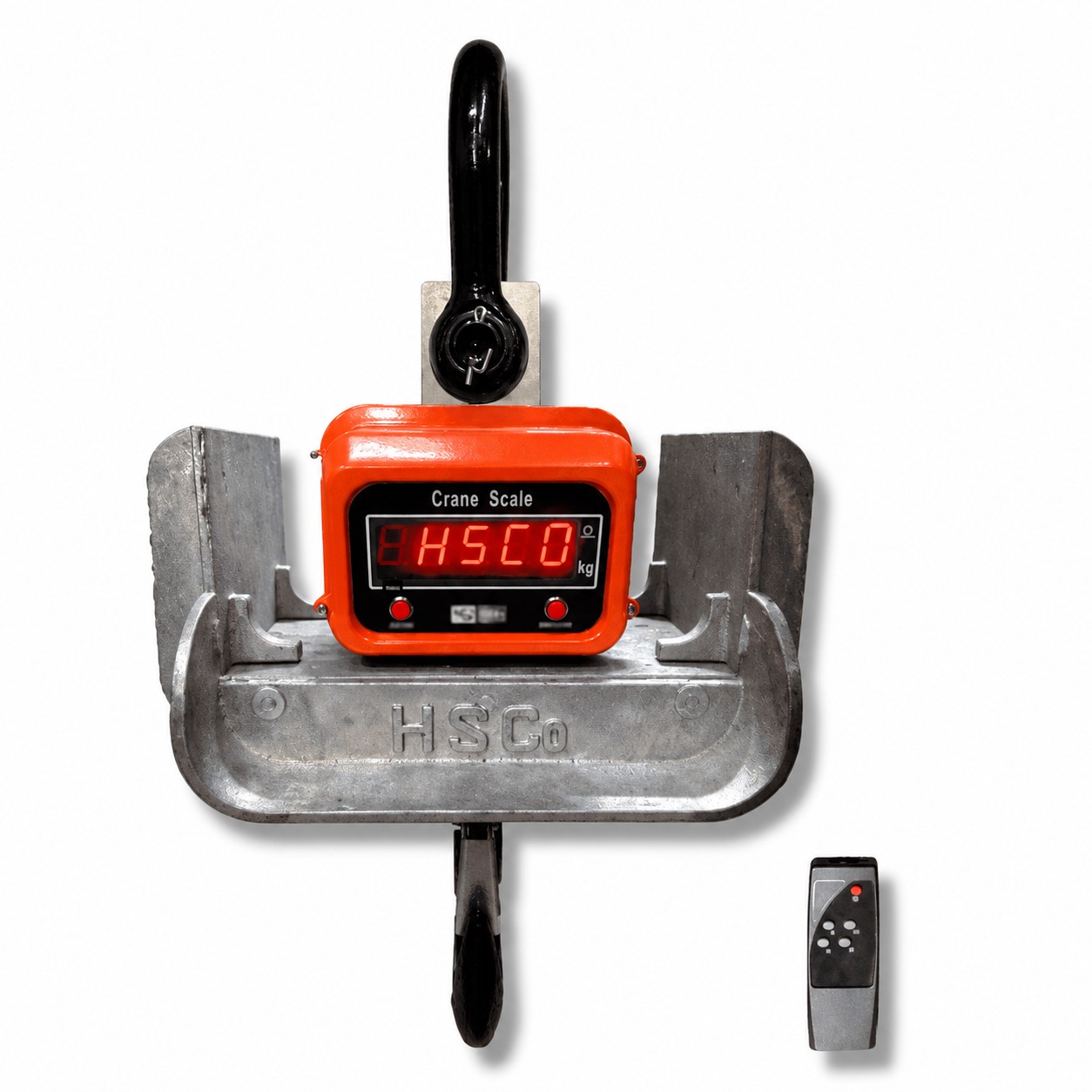

The HSCo CRHHR is a heat-resistant electronic crane scale for steel plants, foundries and metal processing, where loads come off furnaces hot. A metal heat-shield plate under the die-cast body deflects radiant heat from the load, a heat-protected battery lasts up to 40 hours, and a hand remote lets the operator tare and read from a safe distance. Capacities run from 3 to 50 tonnes.
Why hot-metal plants choose the CRHHR
- Heat shield. A metal plate below the scale protects it from heat rising off hot loads.
- Tough body. Aluminium die-cast with rust- and corrosion-resistant coating.
- Remote operation. A hand remote for tare, calibration and power-off, away from the heat.
- Long battery. Up to 40 hours on a charge.
- Steady readings. A stability chip for swinging loads, with a bright LED display.
Specifications
| Capacities | 3,000, 5,000, 10,000, 20,000, 50,000 kg |
|---|---|
| Accuracy options | 1 kg, 2 kg or 5 kg (choose above) |
| Body | Aluminium die-cast, heat-resistant design with heat-shield plate; heat resistant up to 800 °C |
| Rigging | Hook top and bottom |
| Display | Bright LED |
| Remote | Hand remote: tare, calibration, power off |
| Functions | Tare, zero, auto zero tracking, auto calibration, power saving, sleep mode |
| Power | AC 230 V / DC 9 V; heat-protected rechargeable battery, up to 40 hours |
| Options | Wireless remote display (range up to 200 m), handheld display with printer, Bluetooth |
| Load cell overload | 200% |
| Certification | ISO 9001:2015 certified company |
| Warranty | 1 year |
Where it is used
Steel plants, foundries, forging shops, metal processing units and heavy manufacturing with hot loads. For normal conditions, see the CRH crane scale or the CRHRD with remote display. Browse all crane scales.
Questions buyers ask
A metal heat-shield plate below the scale deflects radiant heat, and the battery is heat-protected.
3, 5, 10, 20 and 50 tonnes.
Yes. The hand remote and optional remote display let them work at a distance.
Up to 40 hours on a charge.
Order or ask for a quotation
Choose the capacity and accuracy above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the load temperature and capacity. Hindustan Scale Company, Mumbai, since 1955.
