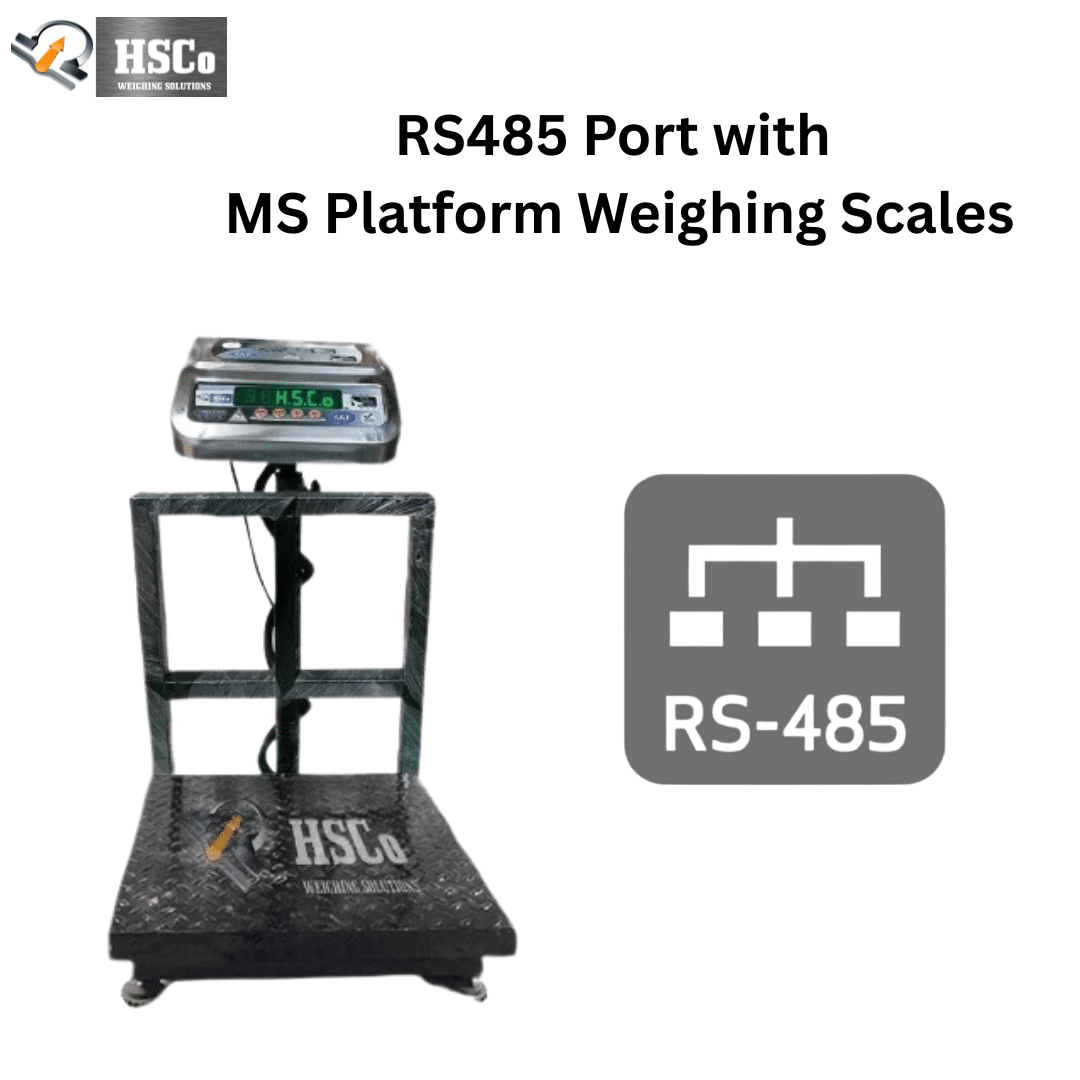

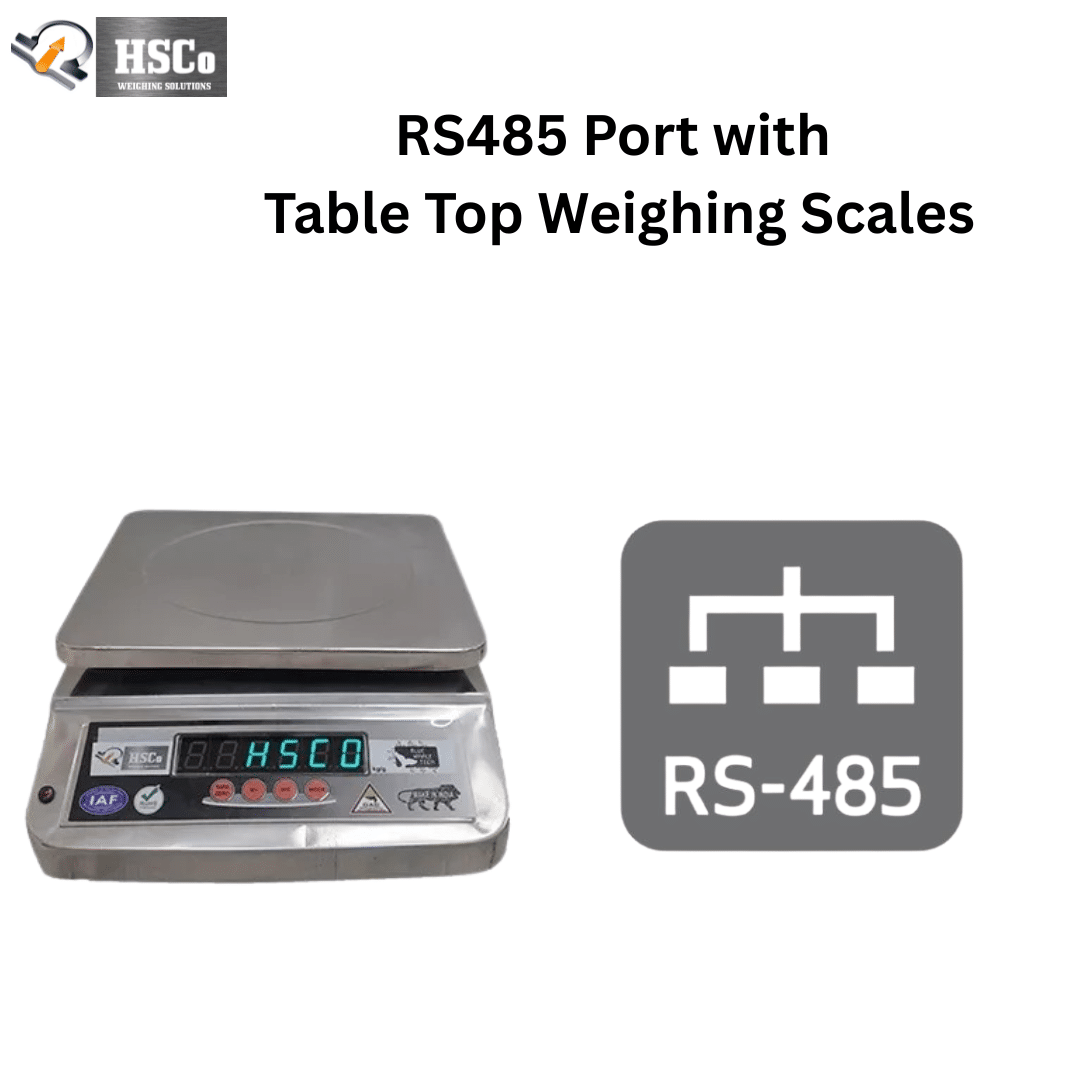

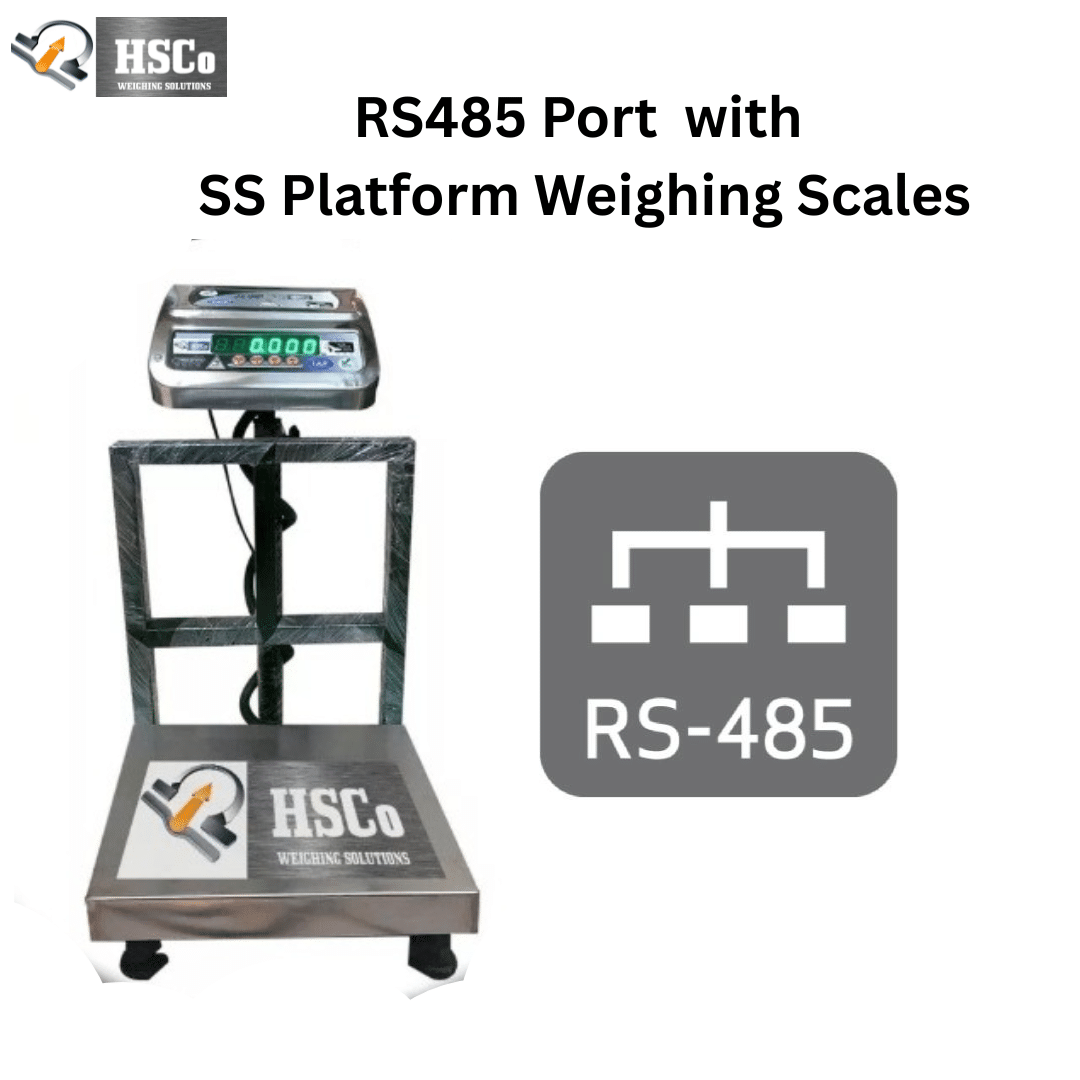

An RS485 port scale is a complete HSCo weighing scale with an RS485 output built in at the factory, so its weight readings go straight into a PLC, SCADA system or industrial controller. RS485 carries data over long cable runs with little interference and lets several scales share one line, which is why process plants use it to watch many weighing points from one control room. We build it on a table-top scale or an MS or SS platform scale.
Why RS485
- Long cable runs: RS485 is designed for long distances between the scale and the control room.
- Several scales on one line: multiple devices can share a single interface.
- Little interference: reliable data in electrically noisy plants.
- Works with automation: connects to PLCs, SCADA systems and industrial controllers.
Where it is used
| Chemical plants and refineries | Weights into SCADA for real-time monitoring and control |
|---|---|
| Food and beverage processing | Batch control and recipe management from a central system |
| Pharma manufacturing | Secure, tamper-proof data logging over long cable runs |
| Fertiliser and cement | Central control of many weighing stations |
| Automated production lines | Scale data synchronised with PLC-based operations |
| Protocol | Modbus RTU over RS485 |
| Warranty | 1 year |
Scale or add-on?
This product is a complete scale with RS485 built in. Already have a scale? The RS485 interface for weighing scales is the add-on that fits an existing HSCo scale and most other makes.
Questions buyers ask
A data output that sends the weight over a long, interference-resistant cable to a PLC, SCADA system or computer.
Yes. RS485 lets multiple devices share one line.
Table-top scales and MS or SS platform scales; tell us if you need another type.
Yes, with our RS485 interface add-on.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the scale type and capacity, what it connects to (PLC, SCADA, PC) and the cable distance. More custom builds are in Connectivity & Customised Scales. Hindustan Scale Company, Mumbai, since 1955.
