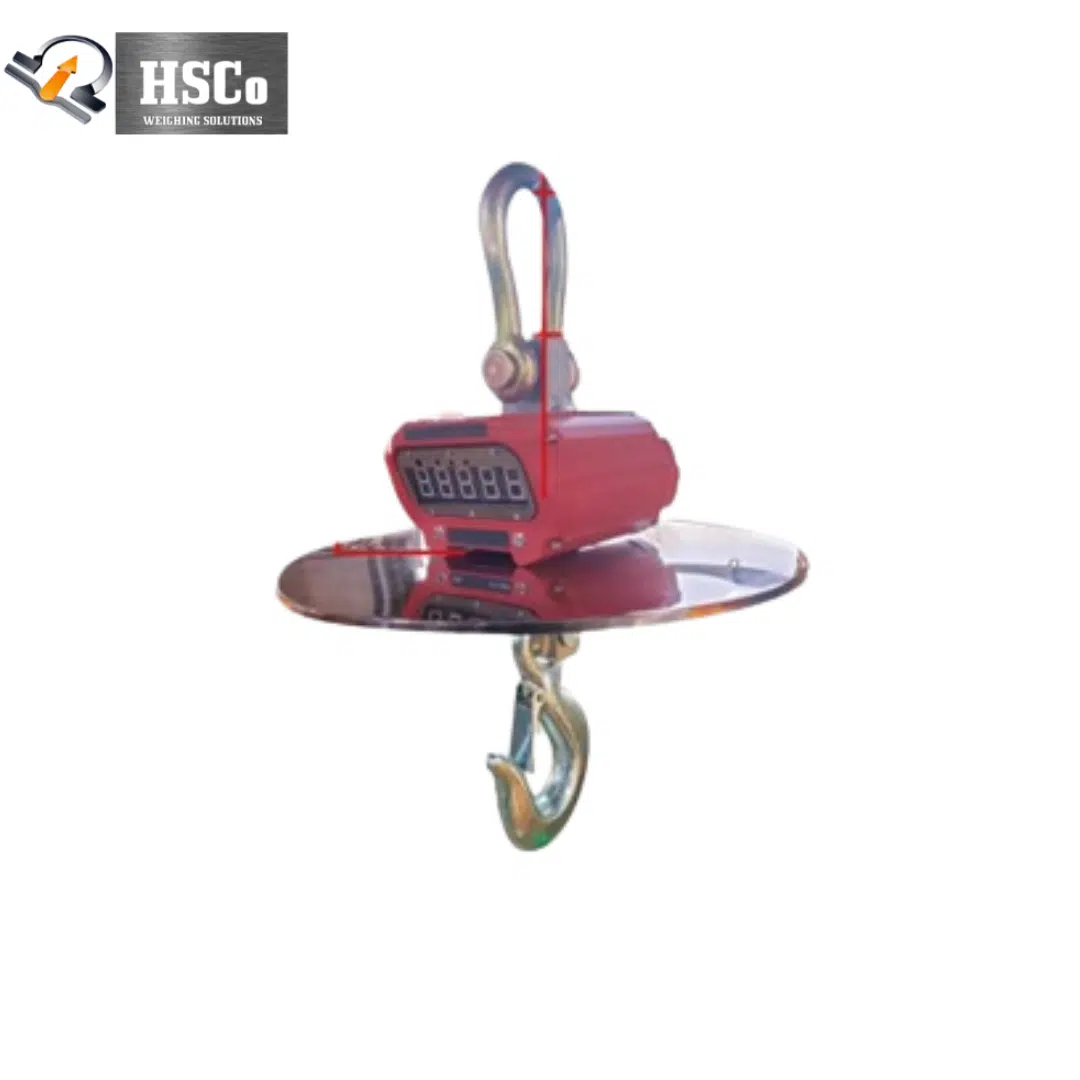

HSC-NZS Heat Resistant Crane Scale – 3 t to 20 t, Heat Shield up to 850 °C, Jumbo Remote
Price range: ₹24,000.00 through ₹60,000.00 (ex. GST) (₹28,320.00 – ₹70,800.00 incl. GST)
Heat resistant crane scale HSC-NZS: 3, 5, 10 or 20 t in 1, 2 or 5 kg steps; die-cast aluminium body with heat shield for work up to 850 °C; jumbo green display; jumbo hand remote; charge while in use; 200% overload load cell. For steel plants and foundries. 1-year warranty.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices
The HSCo HSC-NZS series heat resistant crane scale weighs hot loads under a crane in steel plants, foundries and metal processing, with a heat shield under its die-cast aluminium body for work up to 850 °C. It comes in 3, 5, 10 and 20 tonne capacities, reads on a jumbo green display you can see from a distance, and is operated from a jumbo hand remote with more than ten times the usual range. Every unit is inspected and calibrated by our quality team before dispatch.
Why steel plants choose it
- Heat shield for work over hot loads, up to 850 °C.
- Four capacities: 3, 5, 10 and 20 t, in 1, 2 or 5 kg steps.
- Jumbo green display, bright and readable from all sides.
- Jumbo remote: tare, calibration and power off from a safe distance.
- Stable readings on moving loads, with a stability chip and very high internal counts.
- Charge while in use: no need to take the battery out.
- Strong load cell rated for 200% overload, with a life of up to 10 years.
Specifications
| Model | HSC-NZS series |
|---|---|
| Capacities | 3,000, 5,000, 10,000, 20,000 kg |
| Accuracy options | 1 kg, 2 kg or 5 kg (choose above) |
| Body | Aluminium die-cast, rust and corrosion resistant coating; heat shield; heat resistant up to 850 °C |
| Display | Jumbo green LED, wide viewing angle |
| Remote | Jumbo hand remote: tare, calibration, power off; dust and water resistant |
| Functions | Tare, zero, auto zero tracking, auto calibration, power saving, sleep mode; digital overload indication |
| Electronics | Water-resistant PCB; stainless-steel buttons |
| Power | AC 230 V / DC 9 V; rechargeable battery, can be charged in use (backup time depends on the model) |
| Load cell | Steel alloy; 200% overload; life up to 10 years |
| Options | Wireless remote display (range up to 200 m); hand-held display with printer, 1,000 records (range up to 30 m); hand-held remote with jumbo display, printer and USB; jumbo display (red or green); Bluetooth; RS-232; printer; double J hook |
| Certification | ISO 9001:2015 certified company |
| Warranty | 1 year |
Which heat resistant crane scale?
See also the CRHHR heat resistant crane scale series. To read the weight away from the crane, add the CRHRD remote display. Browse all connectivity and customised scales.
Where it is used
Steel plants, foundries, forging and casting shops, construction cranes, docks, wood and heavy industries: anywhere hot or heavy loads are weighed while lifted.
Questions buyers ask
Its heat shield protects the scale for work up to 850 °C.
3, 5, 10 and 20 tonnes, with 1, 2 or 5 kg steps.
With the jumbo hand remote, which has more than ten times the usual range and does tare, calibration and power off.
Yes, as options: a hand-held display with printer, USB, RS-232 or Bluetooth.
Yes. Every unit is inspected, calibrated and tested by our quality team, then packed in foam and strong cartons, or wooden boxes when needed, with its documents and user manual.
Order or ask for a quotation
Choose the capacity and accuracy and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 10000 kg, 20000 kg, 3000 kg, 5000 kg |
|---|---|
| Accuracy | 1 kg, 2 kg, 5 kg |
