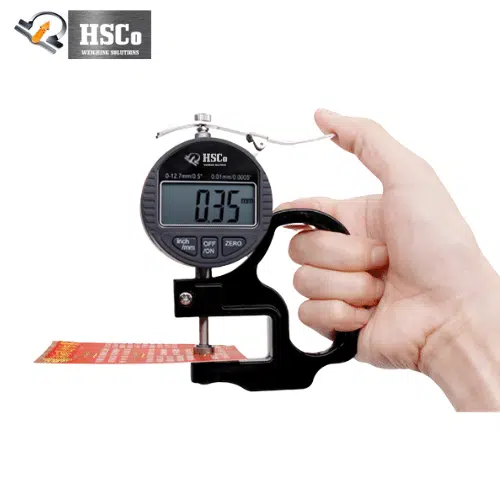

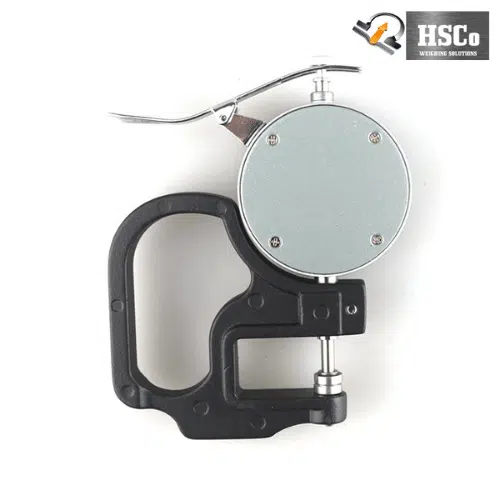

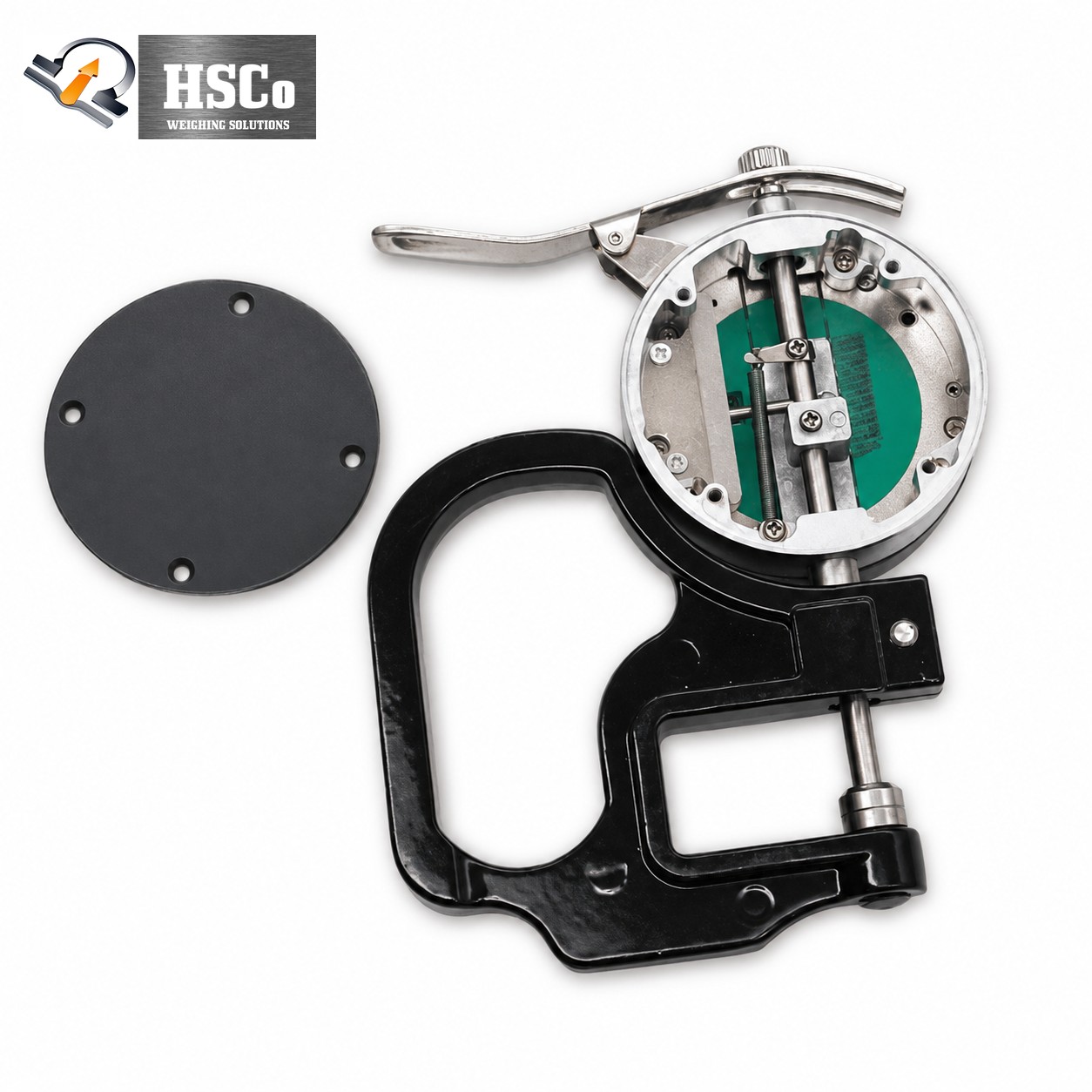

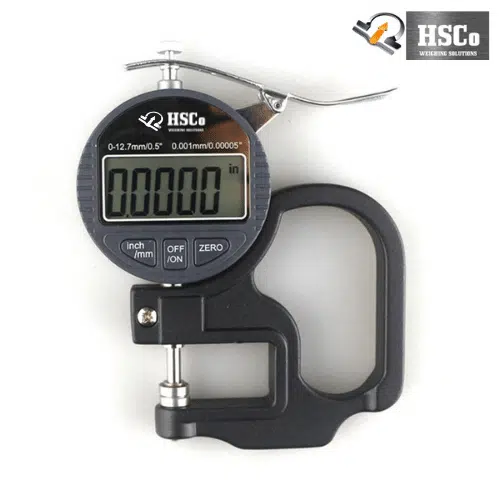

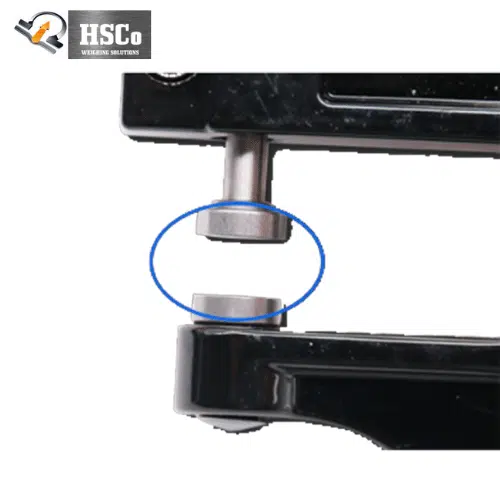

This electronic thickness gauge measures thickness from 0 to 12.7 mm (0.5 in) with 0.001 mm (0.00005 in) resolution and a 30 mm measuring depth. Lift the handle, place the sheet between the anvils and read the result on the large LCD in mm or inch. It has ON/OFF, ZERO and inch/mm keys and runs on one 1.55 V button cell (not included). It is used for jewellery, leather, rubber, fabric, wire, paper, film and metal sheet.
Why buyers choose it
- 0 – 12.7 mm in 0.001 mm steps.
- 30 mm measuring depth.
- Large LCD, mm or inch.
- Zero key for quick comparisons.
- Handle lever for one-hand use.
Specifications
| Range | 0 – 12.7 mm (0.5 in) |
|---|---|
| Resolution | 0.001 mm / 0.00005 in |
| Measuring depth | 30 mm |
| Display | Large LCD |
| Keys | ON/OFF, ZERO, inch/mm |
| Size | About 120 × 100 mm |
| Power | One 1.55 V battery (not included) |
| Warranty | 1 year |
Which instrument?
Browse all linear measures.
Where it is used
Measuring the thickness of jewellery, leather, rubber, fabric, wire, paper, film and metal sheet.
Questions buyers ask
What is the range?
0 to 12.7 mm (0.5 inch).
How fine is the reading?
0.001 mm, or 0.00005 inch.
Is the battery included?
No. It takes one 1.55 V battery, not included.
Order or ask for a quotation
Add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
