Double Ramp Scale – External Ramp Platform Scale, 200 kg to 1,000 kg, for Wheelchairs and Trolleys
Price range: ₹33,500.00 through ₹39,500.00 (ex. GST) (₹39,530.00 – ₹46,610.00 incl. GST)
Low-profile electronic platform scale with a ramp at each end: wheelchairs, trolleys and carts roll on and off. 200, 300, 500 or 1,000 kg; MS chequered platform; green LED indicator on an MS stand; rechargeable battery; 200% overload load cells; one year of government stamping. 1-year warranty.

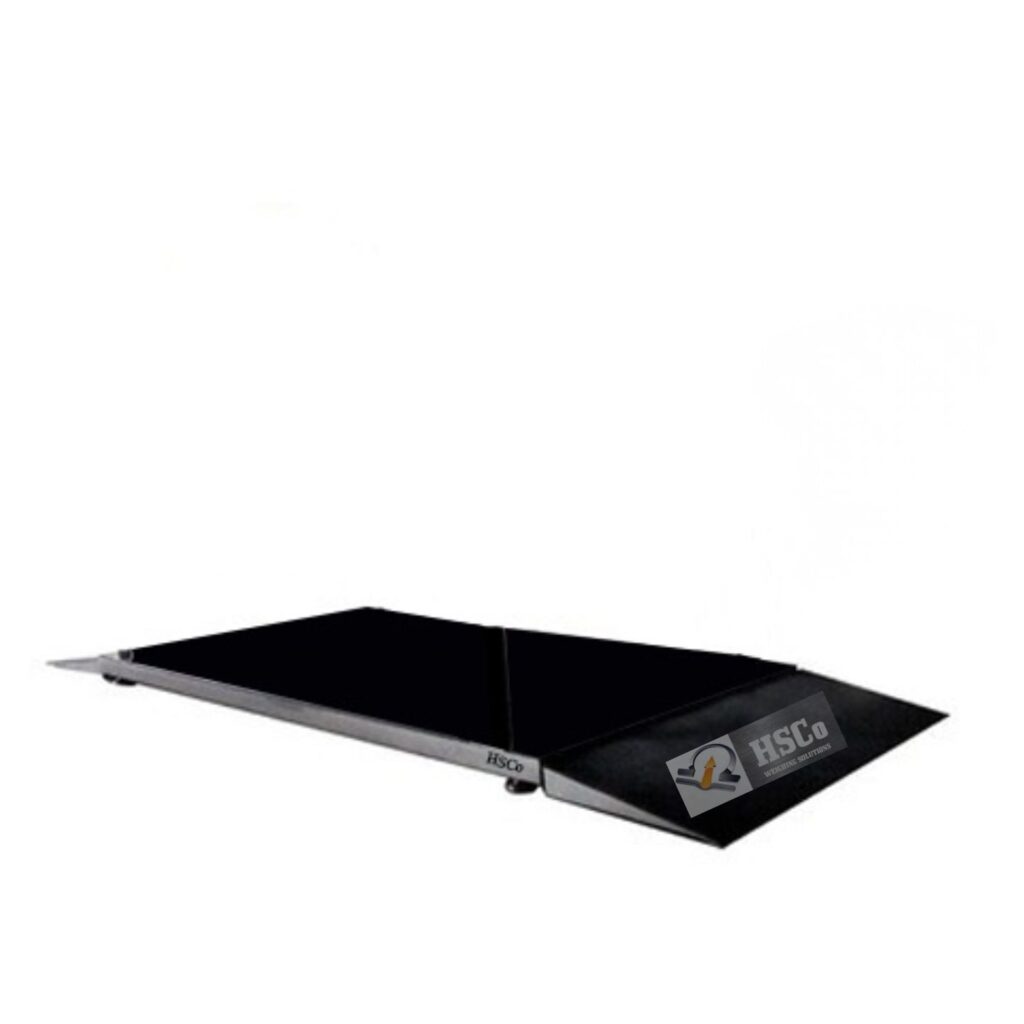

The HSCo electronic external ramp scale, double ramp series, is a low-profile platform scale with a ramp at each end, so a wheelchair, trolley or cart rolls on from one side and off the other without being lifted. It is used in hospitals, clinics and wellness centres to weigh patients in their wheelchairs, and in warehouses to weigh loaded trolleys. It comes in 200, 300, 500 and 1,000 kg capacities, with a bright green LED indicator on an MS stand, and is supplied with one year of government stamping and the original certificate.
Why buyers choose it
- Two ramps. Roll on from one end and off the other; no lifting and no turning round on the platform.
- Very low platform of MS chequered plate, rugged and easy for wheelchairs.
- Four capacities: 200, 300, 500 and 1,000 kg.

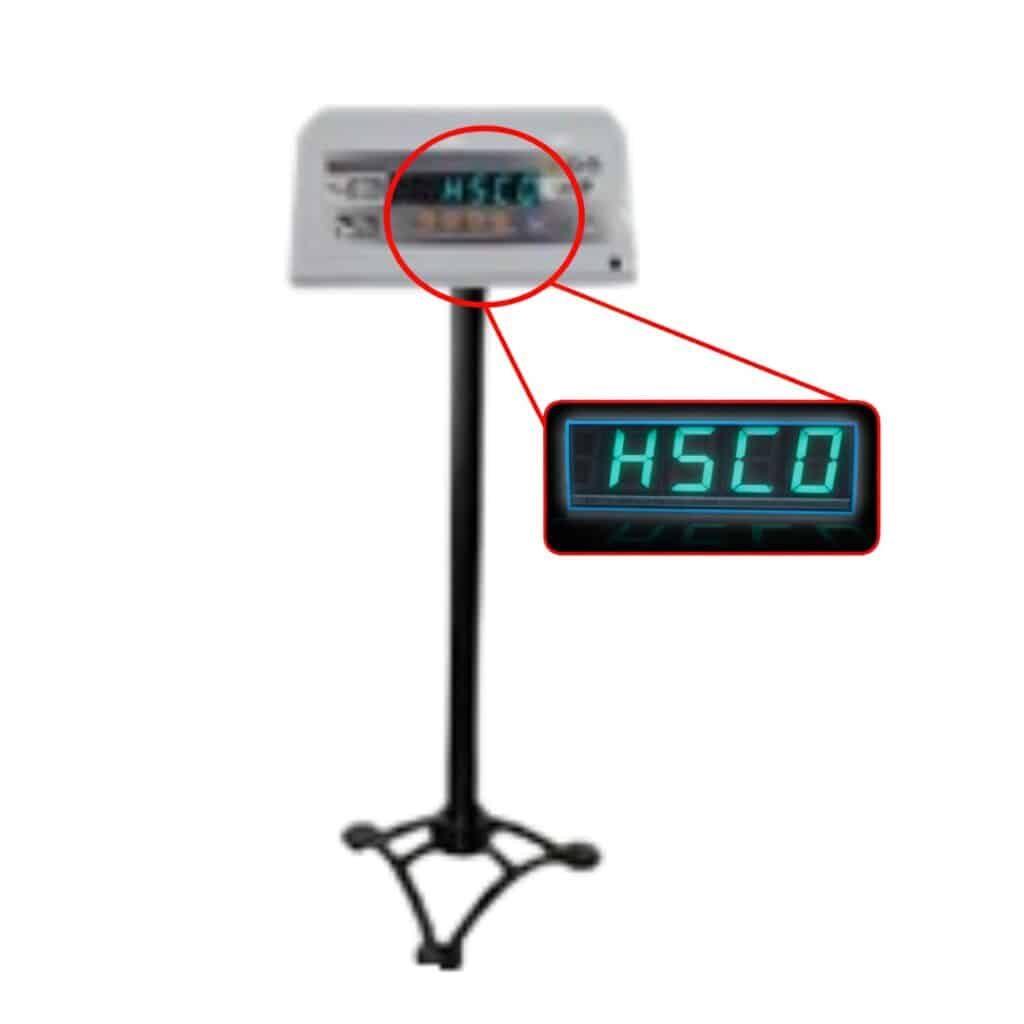

- Clear reading on a green LED indicator, readable from all sides, on a sturdy MS stand.
- Works through power cuts on its rechargeable battery, with sleep mode to save it.
- Strong load cells rated for 200% overload, water and rust resistant, with a life of up to 10 years.
- Government stamped, with one year of stamping and the original certificate.
Specifications
| Model | Electronic external ramp scale, double ramp series |
|---|---|
| Capacity | 200 kg, 300 kg, 500 kg, 1,000 kg |
| Platform | Low-profile MS chequered plate, with a ramp at each end |
| Indicator | Green LED, wide viewing angle, on an MS stand |
| Functions | Tare, zero, auto zero tracking, auto calibration, auto power saving, sleep mode, piece counting; digital overload indication |
| Electronics | Water-resistant PCB; 90+ micron powder-coated body |
| Load cells | 200% overload; rust and water resistant; life up to 10 years |
| Power | 230 V AC ±10%, 50 Hz / 9 V DC; 6 V rechargeable battery (backup time depends on the model) |
| Working temperature | 0 – 40 °C |
| Options | Printer; Bluetooth; USB; RS-485; remote or Wi-Fi display; jumbo display; POS indicator; LED and buzzer overload alert |
| Certification | 1 year of government stamping with original certificate; ISO 9001:2015 certified company; Made in India |
| Warranty | 1 year |
Which ramp scale?
For a single ramp (drive on, back off), see the WCS wheelchair scale with single ramp. For a platform set into the floor with its ramp built in, see the PLCHQIR internal ramp scale. Browse all platform scales.
Where it is used
Hospitals, clinics, medical laboratories and wellness centres (patients in wheelchairs), and warehouses, factories and pharmaceutical units (loaded trolleys and carts).
Questions buyers ask
A wheelchair or trolley rolls on at one end and off at the other, so it never has to turn round or reverse off the platform.
200 kg, 300 kg, 500 kg and 1,000 kg.
Yes, on its rechargeable battery. Backup time depends on the model.
Yes. It comes with one year of government stamping and the original certificate.
Yes, as an option: Bluetooth, USB or RS-485, and a printer can be added.
Order or ask for a quotation
Choose the capacity and add it to your cart, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 200 kg, 300 kg, 500 kg |
|---|
Best Wheelchair Scale for Hospitals & Clinics 🏥 | Hindustan Scale Company (HSCo) · Watch it on our Help & Videos page
