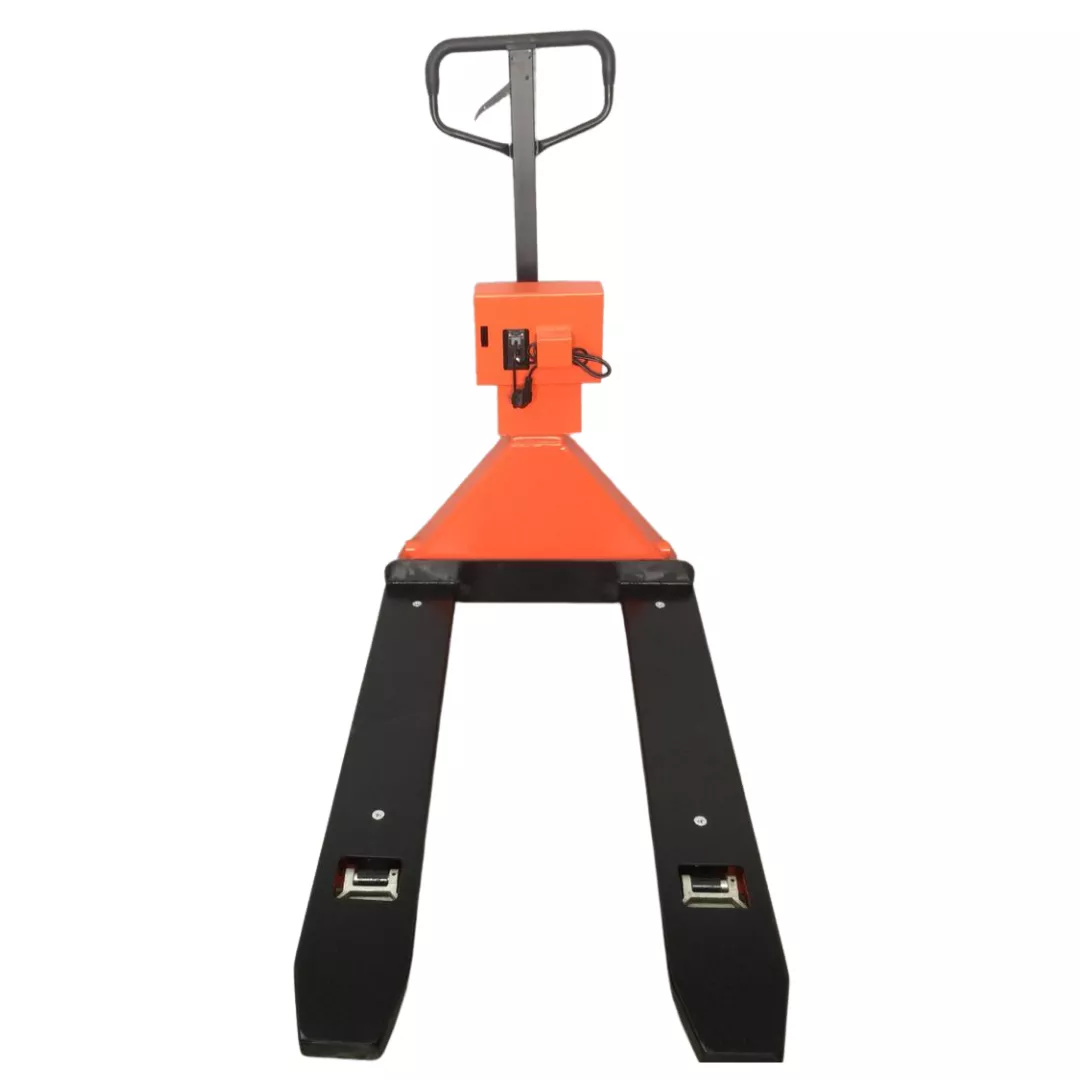

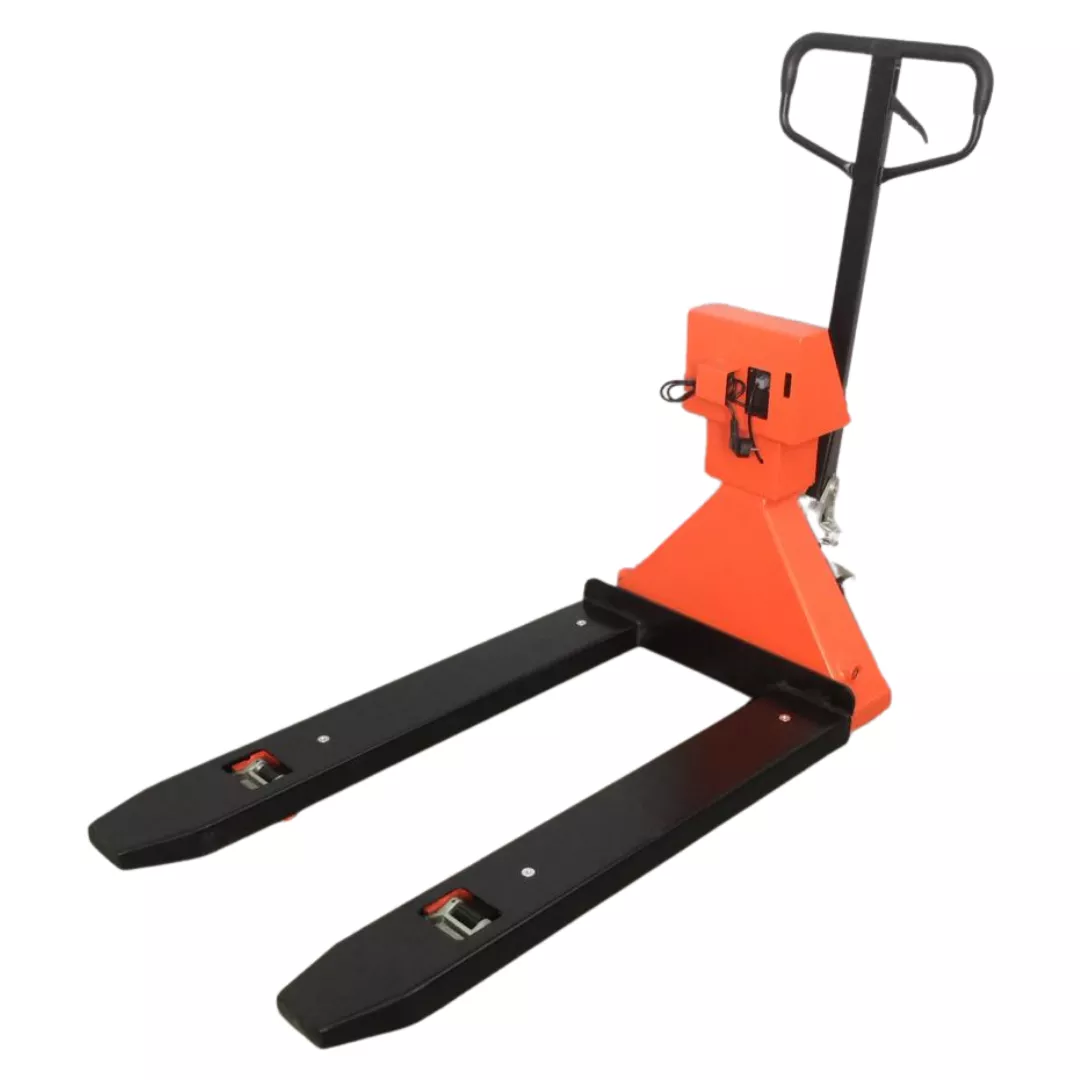

Digital Pallet Scale – HPT
Features:
- U-Shaped Pallet Weighing scales are specially designed for handling pallets thus (No Pit, No ramps) required.
- Very useful for weighing materials in warehouses, storehouses etc.
- Lightweight, easy to remove for one person, with two wheels.
- Deluxe indicator as standard.
- Leak proof design
- Extra roller for easy moving
- Grease nipple at all joints
- Plastic bonded three lever position
- Easy to operate
- Silent in operation
- Requires minimum pulling power
- No oil leakage
- Minimum maintenance
- Maximum maneuverability
- We uses single piece bent forks for extra strength. Hand lowering is the key to productivity. Pull the convenient lever in the pmhe-107 large steering handle and effortlessly deposit the load. The special handle design offers protection for the operator’s handle and makes raising loads and steering easier
- Release the handle and it returns to vertical. A few strokes of the handle provide 110mm of lift, the HPT heavy duty pump is built to take thousands of pick-up and deposit cycles. The pump ‘top-of-stroke’ hydraulic fluid bypass minimizes stress on the system when load is raised to maximum lift height.
- We offers pivoting steering wheels.
- To ensure constant floor contact and stability.
- To reduce wear and tear on the wheels.
- We offers an ergonomically designed steering handle
- For easy operation from all angles ergonomically
- To reduce pulling power and minimize operation fatigue.
- We offers double sealed ball bearing to ensure dust free operation.
Specification :
- Capacity: 2ton & 3ton
- Fork length: 1150mm
- Fork width: 550mm
- Fork: 150mm
- Lower height: 85mm
- Raised height: 200mm
- Lift height: 115mm
- Lift: 9mm / Stroke
- Lower Speed: Continuously variable
- Wheel: 2nos 180x50mm steering nylon wheel with 6204zz double ball bearing & 4nos 80mmx70mm roller nylon wheel with 6204zz double ball bearing
- Color: golden yellow powder coated color
- Handle: 3lever position handle (lift/lock/release)
- Turning radius: 114 degree
- Structure weight: 85kgs to 100kgs
- 20′ feet container: 180nos
