MS Roller Scale PLCHQR – Roller-Top Platform Scale, 100 kg to 1,000 kg
Price range: ₹37,500.00 through ₹58,000.00 (ex. GST) (₹44,250.00 – ₹68,440.00 incl. GST)
Heavy-duty mild-steel roller-top platform scale: goods roll on and off without lifting. 100 kg to 1,000 kg, ±10–50 g, custom platform size, tare/zero/count/hold, battery backup.
हिंदी में इसे वजन काटा कहते हैं. Vajan Kata (वजन काटा) – all types and prices

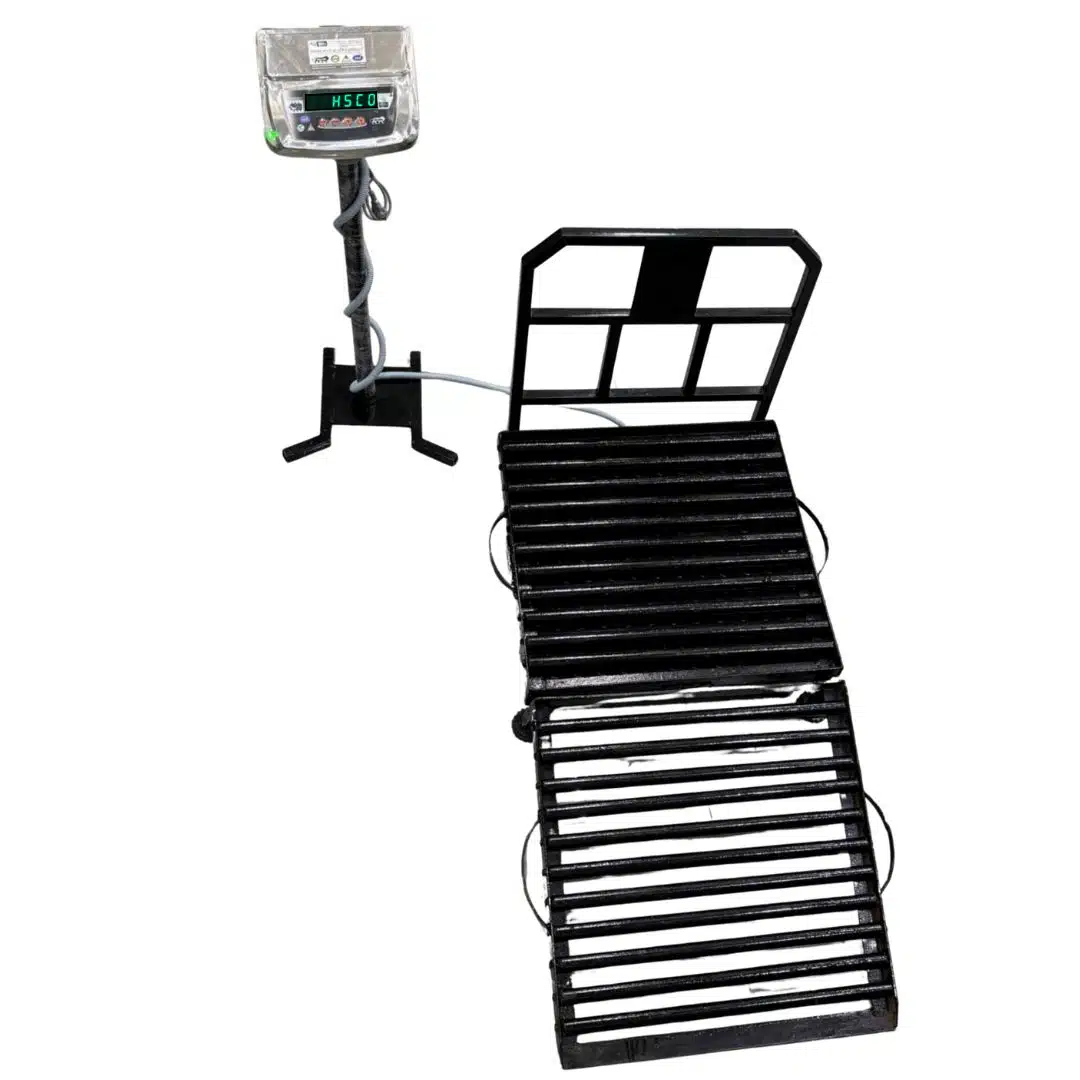

The HSCo MS roller scale PLCHQR is a heavy-duty platform scale with a top made of mild-steel rollers, so cartons, crates and boxes slide on and off without lifting. It weighs from 100 kg up to 1,000 kg, with platform size made to suit your conveyor or dispatch table, and suits warehouses, dispatch areas, factories and logistics hubs.
Why dispatch teams choose it
- Roll on, roll off. Goods glide across the roller top, which saves lifting and speeds up weighing.
- Heavy-duty mild steel built for high loads and daily industrial use.
- Accurate, repeatable readings on a digital LED indicator on its own stand.
- Useful functions. Tare, zero, counting and hold.
- Runs through power cuts on a rechargeable battery.
- Connects when needed. Bluetooth, USB and external printer options.
Specifications
| Model | PLCHQR series |
|---|---|
| Capacity | 100 kg to 1,000 kg (customisable) |
| Accuracy | ±10 g to ±50 g, depending on capacity |
| Platform size | Made to order |
| Material | Mild steel with roller top |
| Display | Digital LED indicator on a separate MS stand |
| Functions | Tare, zero, count, hold |
| Power | 230 V AC; rechargeable battery |
| Options | Bluetooth, USB, external printer, extra display |
| Load cell overload | 200% |
| Load cell life | Up to 10 years |
| Certification | ISO 9001:2015 certified company |
| Warranty | 1 year |
Where it is used
Warehouses and logistics, courier and distribution centres, packaging units, dispatch areas, assembly lines, recycling and agriculture. Read how an 8-year-old HSCo platform scale is still going strong, or compare all platform scales.
Questions buyers ask
A platform scale with a roller top, so goods can be pushed on and off instead of lifted.
From 100 kg up to 1,000 kg; choose in the options above or ask for a custom size.
Yes. Platform size is made to order.
Yes, with the printer, USB or Bluetooth options.
Order or ask for a quotation
Choose the capacity above, or call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the capacity and roller platform size you need. Hindustan Scale Company, Mumbai, since 1955.
| Capacity | 1000 kg, 500 kg |
|---|
HSCo Electronic Platform Weighing Scale - A Comprehensive Product Demonstration · Watch it on our Help & Videos page
