How loading and unloading weighbridges, data-connected and reconciled against each other, move closing coal stock out of the estimated column and into the measured column for thermal-power and coal-mining yard and audit managers carrying tonnage worth crores.
The closing coal stock in your books is, for most yards, an estimate — a volume read off the pile and multiplied by an assumed density, not a weighed tonnage — and the gap between that estimate and the truth is where transit loss, mis-declaration and pilferage collect, undetected, until an auditor finds it.
For thermal-power and coal-mining yard and audit managers, the number that decides whether a stockpile reconciles is whether the coal was weighed in and weighed out, or merely estimated.
This white paper makes one argument: the fix is not a tighter estimate but a measured weighing at both ends, reconciled. The Comptroller and Auditor General found physically-verified coal at NTPC’s Badarpur station exceeding the yard’s rated storage capacity by 94–114% in two quarters of 2015-16 under the volumetric method — raising doubts on the correctness of reported coal stock and transit loss. Separately, weighbridges were absent at the loading points of 64 of 107 audited collieries, leaving scope for en-route pilferage that ‘could not be determined in the absence of weighing facility at loading points.’ The CAG’s own recommendation is electronic weighbridges at both loading and unloading points, so shortages can be ascertained and recovered.
1. The crores you write off live in a tonnage you estimated instead of weighed.
In a coal yard, the decisive number is not the volume of the pile — it is whether what left the colliery was weighed, whether what arrived was weighed, and whether the two were reconciled.
Closing coal stock is, in most yards, a derived figure: surveyors estimate the volume of the pile by rope-and-tape or angle-of-repose, multiply by an assumed bulk density, and book the result as tonnage. That estimate then flows into inventory, into transit-loss accounting, and onto the balance sheet — at a landed cost of roughly ₹3,000–4,000/tonne depending on whether the coal is pit-head, coastal or imported-blended (illustrative range, not an official figure).
A volume survey tells you how big the pile looks. Only weighing the coal in and the coal out — and reconciling the two tells you how much is actually there. Treating an estimate as a measured tonnage is the original error that every crore of unexplained shortage is built on.
2. The audit findings are on the record, and the CAG has already named the fix.
The case for two-ended weighment is not a vendor pitch — it is the documented finding of India’s Supreme Audit Institution across two performance audits, together with the CAG’s own recommendation for how to close the gap.
The estimate is demonstrably unreliable

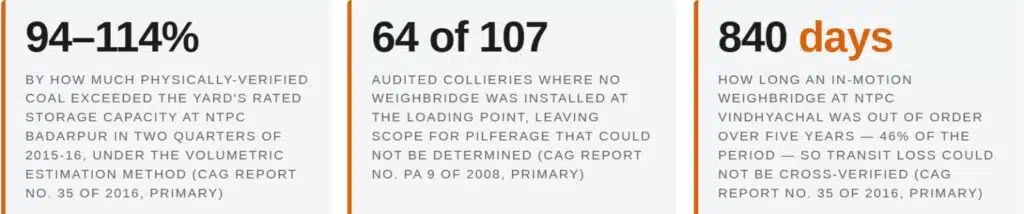

In its Power Sector performance audit, the CAG found that where closing stock was derived volumetrically rather than weighed, physically-verified coal at NTPC’s Badarpur station exceeded the yard’s rated storage capacity by 94–114% in two quarters of 2015-16, and exceeded capacity at eight of the audited NTPC stations — ‘raising doubts on the correctness of coal stock and transit loss reported by the stations.’ Where in-motion weighbridges did exist, they were frequently out of order, one at Vindhyachal for 840 days across five years (46% of the period), so transit loss could not be cross-verified.
And the loading end is often unmeasured
An earlier audit of Eastern Coalfields found weighbridges were not installed at the loading points of 64 of 107 collieries; in the Pandaveswar area there was no weighbridge at any loading point, so coal was road-hauled to distant sidings with no pit-head weighment — leaving ‘scope for pilferage of coal en-route which could not be determined.’ One procured rail weighbridge lay uninstalled in store from April 1990, while shortages of ₹32.59 lakh and excess underloading charges of ₹8.98 lakh accrued in seven months.
CAG Report No. PA 9 of 2008 (primary)
3. Coal goes unmeasured in five predictable ways — and a single-ended yard is open to all five.
An unexplained shortage rarely arrives as a single dramatic event. It accumulates through a small, repeatable set of gaps that exploit the fact that tonnage is estimated, weighed at only one end, or weighed on an instrument no one verified.
None of these is large on a single trip, which is exactly why a single-ended or estimate-based yard lets them compound into real tonnage and real rupees before an audit surfaces them.
1. Volumetric estimate booked as fact
Closing stock is derived from a surveyed volume times an assumed density and booked as if exact — the method under which CAG found verified coal 94–114% over rated yard capacity at Badarpur, with no weighed number to reconcile against.
2. No weighment at the loading point
Coal leaves the pit head with no weighbridge — the case at 64 of 107 audited collieries — so the loaded tonnage is never fixed and any en-route loss ‘could not be determined in the absence of weighing facility.
3. Weighbridge installed but out of order
4. Loaded, never reconciled against received
Even where both ends weigh, the loaded and received tonnages are filed separately and never compared per consignment, so a persistent transit gap stays invisible though the data to detect it exists.
5. Shortage absorbed as ‘normal transit loss
Persistent gaps are written into a standing transit-loss allowance that mixes genuine handling loss, mis-declaration and pilferage into one number that is never decomposed or recovered from the transporter.
Why the fix is one reconciliation, not five workarounds
Each failure lives in the same gap: a tonnage that was estimated or weighed at only one end, then never reconciled. Weighing at both the loading and unloading points, on verified instruments, with the two figures reconciled automatically per consignment and a flag when the gap exceeds tolerance, narrows all five at once — which is why the answer is a single closed loop, not five manual checks.
Mechanism note: this section describes operational failure modes drawn from the CAG findings. The 94–114%-over-capacity, 64-of-107, and 840-day figures are primary CAG findings, attributed in the evidence base. No quantified loss-reduction efficacy is claimed for reconciliation, as none is within the verified evidence; what the audits establish is that two-ended weighment, not estimation, is the control the auditor itself recommends.
4. A reconciliation is only as good as the two weighments it compares.
Reconciling loaded against received tonnes is meaningless if either weighbridge drifts by more than the shortage you are hunting.
Build for overload and a hostile yard
Coal vehicles run heavy and yards run rough. Hindustan Scale Co.’s electronic road weighbridges — the HSCPTW and the pitless HSCPLTW — are built, per the manufacturer, from heavy-duty IS 2062 structural steel with the load-carrying structure designed for 50% overload, on double-ended shear-beam load cells, with the ‘HSCO Hydra’ hydrophobic anti-rust and anti-acid coating and a lightning-resistant junction box. These are road and truck weighbridges; capacity and platform size are quoted to requirement rather than published.
Weigh at both ends — including, where needed, the rail end
The control the CAG recommends is weighment at both loading and unloading points. For road movements, that is an HSCPTW or HSCPLTW at each end.
Calibrate to a standard, not to a number
CAG Report No. 35 of 2016 (primary), two quarters 2015-16
A weighbridge at the loading point and a weighbridge at the unloading point, each reading true against its standard, turn ‘the pile looks about right’ into a tonnage you weighed twice and reconciled. The reconciliation is only ever as trustworthy as the weaker of the two weighments behind it.
5. Bind each weighment to a vehicle and instrument, reconcile loaded against received, and the shortage becomes a flag not a write-off.
The weighbridges produce trustworthy tonnages.
Capture every weighment at source
IoT data capture — Blue Whale’s own data-capture module reading the weighbridge indicator’s serial output — takes each weighment with its timestamp and the identity of the calibrated weighbridge it was made on, while ANPR and RFID bind that tonnage to the specific vehicle or wagon. No manual transcription sits between the scale and the record, so the tonnage that enters the reconciliation is the tonnage the instrument actually reported, against a vehicle that cannot be quietly swapped.
Write once, to a record you can defend
With the Blue Whale Technology cloud layer, every weighment becomes an attributable, immutable record — what, when, how much, which vehicle, on which weighbridge. For a yard or audit manager, that is the difference between a closing stock that traces to two weighments on calibrated instruments and one that rests on a volume survey no auditor can follow. One source of truth that operations, finance and audit read the same way, and that feeds ERP and e-way-bill reconciliation directly.
Reconcile loaded against received and flag the gap
The Blue Whale layer reconciles the loaded tonnes against the received tonnes for each consignment and flags the result when the gap exceeds the configured tolerance. A standing ‘normal transit loss’ allowance becomes a queue of specific, investigable signals — this consignment lost more than tolerance, this loading weighbridge needs checking — rather than a number absorbed blind into the accounts and never recovered from the transporter.
6. A reconciliation is only as defensible as the calibration behind its two weighments.
Engineering and automation produce a loaded-versus-received figure. Calibration and the right specification keep that figure trustworthy and keep both weighbridges fit for a coal yard’s overload, dust and corrosion.
Calibrate both weighbridges, traceably, on a schedule
A loaded-versus-received gap is only diagnostic if both weighments are traceable. Calibration against weights traceable to national standards performed by a NABL-accredited service with digital certificates — keeps each weighbridge within its verification class, so a drift is caught on schedule rather than mistaken for transit loss. Weighbridges used in trade are also verified and stamped under the Legal Metrology Act, 2009, which is what makes a reconciled tonnage defensible in an audit or a dispute with a transporter.
Specify each weighbridge to its duty
The table below sets out the attributes confirmed in HSCo’s manufacturer-stated product descriptions; no numeric accuracy or least-count figure is asserted, as none is independently verified accuracy is referenced generically against the relevant IS / OIML standard and confirmed at the point of supply.
Product note: HSCPTW, HSCPLTW and the cup-and-ball load cell attributes above are manufacturer/vendor-stated, sourced to HSCo’s live product pages (vendor self-description, not independently lab-verified), and are configuration-dependent. No HSCo weighbridge accuracy or least-count figure is independently verified or asserted here; any accuracy claim is framed against IS 1432 / OIML R 76 rather than as an HSCo number. The ZM510 weight indicator, where referenced in a yard, is an Avery Weigh-Tronix product integrated as third-party hardware, not an HSCo product. Model designations, accuracy class and verification status are confirmed in writing at the point of supply; request a current HSCo datasheet for hard figures.
7. Seventy years of weighing, certified for tonnages your audit depends on.
For weighbridges whose readings become closing stock and an audit record, accreditation is not decoration each standard answers a question a serious coal-yard or audit manager must ask before trusting a number that moves crores.
What each credential assures you
Built on seven decades, certified across the stack
Hindustan Scale Co. has manufactured weighing instruments since 1955; the Blue Whale Technology division adds the connected, audit-grade data layer that reconciles loaded against received tonnes. For a control whose output becomes closing stock and an audit trail, the assurances that matter most are NABL-traceable calibration on both weighbridges and the attributable, tamper-evident Blue Whale record under 21 CFR Part 11 and CMMI Level 3 the two that decide whether a reconciled tonnage will stand up to an auditor. The wider roster maps each credential to a question a coal-yard or audit manager is right to ask.
Certifications and accreditations are held by Hindustan Scale Co. / Blue Whale Technology at company or product-range level; the specific certification applicable to a given product configuration is confirmed at the point of supply.
8. An estimated stockpile bleeds every period; the measured loop is set up once.
Set the exposure an estimate-based, single-ended yard carries against what an automatic loaded-versus-received reconciliation returns, and the payback is rarely in doubt.
What it costs you today
- Closing stock derived from a volume survey the method under which CAG found coal 94–114% over yard capacity at Badarpur.
- Loading or unloading points unweighed, leaving ‘scope for pilferage that could not be determined’ and shortages never recovered.
- Transit loss absorbed into a standing allowance at a landed cost of ~₹3,000–4,000/tonne (illustrative) crores resting on an estimate no auditor can trace.
What protection returns
- Closing stock moved from the estimated column to the measured column — weighed in, weighed out, reconciled per consignment.
- Heavy-duty IS 2062 weighbridges at both ends, IoT capture and ANPR/RFID binding every tonnage to a vehicle.
- An immutable Blue Whale record and automatic reconciliation that flags a shortage for recovery instead of writing it off.
Next Step: A coal-yard reconciliation review. We assess your weighing points end to end weighbridges at the loading and unloading points, their calibration and verification status, and where loaded tonnes are reconciled against received today then scope a calibrated, IoT-connected loop with ANPR/RFID, ERP/e-way-bill integration and automatic loaded-versus-received reconciliation. Talk to Hindustan Scale Co. and Blue Whale Technology to schedule it.
References & sources.
Figures cited here are drawn from primary Comptroller and Auditor General of India performance audits (Report No. PA 9 of 2008 and Report No. 35 of 2016), identified as such and kept distinct; the two reports support different findings and are never conflated. Variance bands and landed-cost figures sourced from vendor or general market material are identified as illustrative or representative and are never presented as audited fact. HSCo product specifications are manufacturer/vendor-stated and not independently lab-verified. All figures are in Indian rupees; no foreign-currency figures are used in this paper.
- CAG Report No. 35 of 2016, Chapter 5 — Assessment of Quality and Quantity of Coal (Power Sector Performance Audit) [PRIMARY] — Comptroller and Auditor General of India.
- CAG Report No. 35 of 2016, Chapter 5 — weighment at unloading point and in-motion weighbridge outages [PRIMARY] — Comptroller and Auditor General of India.
- CAG Report No. PA 9 of 2008, Chapter II — Ministry of Coal (Eastern Coalfields, weighment of coal, paras 2.7.4–2.7.4.2) [PRIMARY] — Comptroller and Auditor General of India.
- CAG Report No. PA 9 of 2008 — uninstalled rail weighbridge and quantified shortages [PRIMARY] — Comptroller and Auditor General of India.
- CAG Report No. PA 9 of 2008 — Recommendation 2.4: electronic weighbridges at both loading and unloading points [PRIMARY] — Comptroller and Auditor General of India.
- Coal Pricing in India — notified, imported and blended-landed cost context — India Climate & Energy Dashboard, NITI Aayog (general market reference, illustrative).
- Coal Price Index / CIL price notifications (notified-price basis) — Central Electricity Regulatory Commission (general reference, illustrative).
- Drone / aerial stockpile-volume surveys — ‘typical’ 5–10% variance and sub-2% claims (vendor, illustrative) — Vendor and mining-survey material (e.g.
