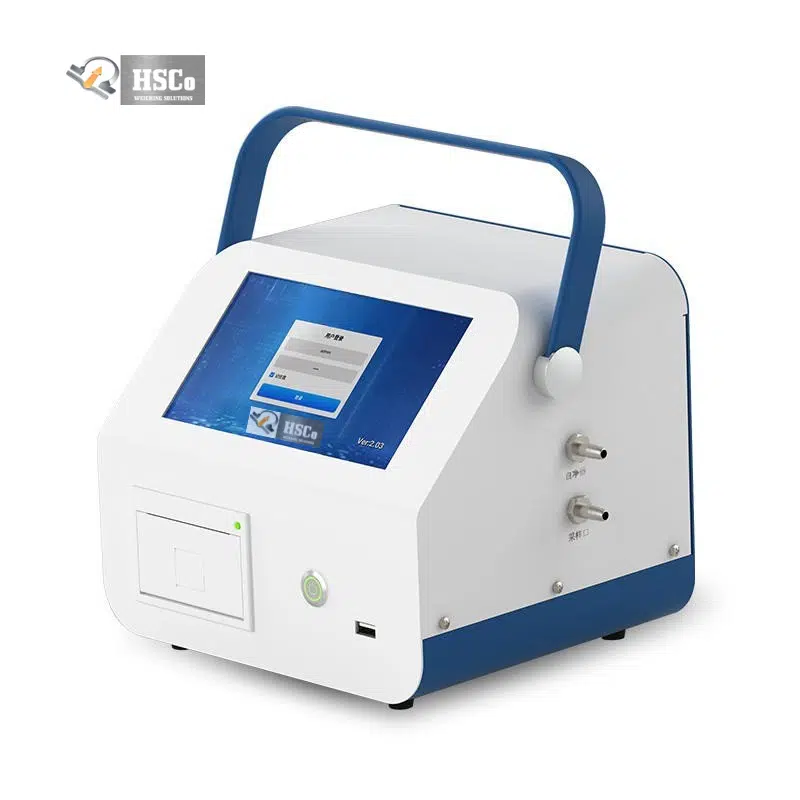

Respirable Dust Sampler HSC-RDS – PM10 / PM2.5, 1–100 L/min
Price on Request
Respirable dust sampler for PM10 and PM2.5: cyclone or impactor separation, 1–100 L/min monitored flow (±5%), 47/37 mm filters, programmable timer, mains or battery, 8–24 hour runs.
The HSC respirable dust sampler collects PM10 and PM2.5 particulate matter from the air onto a filter for weighing and analysis. A cyclone or impactor separates coarse dust from the fine respirable fraction, and an adjustable, monitored flow of 1 to 100 L/min runs continuously or on a timer for up to 24 hours. It is used by pollution control boards, environmental labs, industries and research institutes.
What it does
- Size-selective sampling. Separates PM10 or PM2.5 with a cyclone or impactor.
- Controlled flow. Adjustable from 1 to 100 L/min (typically 16.7 L/min for PM10), with ±5% flow accuracy and a real-time flow display.
- Long, unattended runs. A programmable timer for continuous or interval sampling, with automatic shut-off at the end.
- Field ready. Runs on mains or a rechargeable battery, with a quiet, oil-free pump, a carry handle and a corrosion-resistant body.
Specifications
| Model | HSC-RDS |
|---|---|
| Fractions | PM10 / PM2.5 |
| Size selection | Cyclone or impactor |
| Flow rate | 1 – 100 L/min adjustable (typical 16.7 L/min for PM10); accuracy ±5% of set value |
| Filters | 47 mm or 37 mm; PTFE, quartz or glass fibre |
| Pump | Quiet, oil-free vacuum pump |
| Run time | 8 – 24 hours, depending on flow and power source |
| Timer | Programmable, continuous or interval; auto shut-off |
| Display and data | Digital real-time flow display; optional logging of flow, volume and time |
| Flow calibration | Pre-calibrated rotameter or electronic flow sensor |
| Power | AC 220 V / 110 V mains or rechargeable DC battery |
| Operating conditions | 0 – 50 °C; 10 – 90% RH, non-condensing |
| Body | Lightweight, corrosion-resistant aluminium or stainless steel, with handle and case |
| Accessories | Tripod stand or wall mount, spare filters, flow calibrator, battery charger |
| Warranty | 1 year |
Where it is used
Ambient air monitoring by pollution control boards, environmental consultants and labs, workplace dust surveys in mines, cement, construction and manufacturing, and academic research. See also the HSC-HVAS high volume air sampler, or browse all laboratory analytical instruments.
Questions buyers ask
It collects PM10 and PM2.5 dust from the air onto a filter; weighing the filter gives the dust concentration.
Adjustable from 1 to 100 L/min; 16.7 L/min is typical for PM10.
Yes, on mains or a rechargeable battery.
47 mm or 37 mm PTFE, quartz or glass-fibre filters.
Ask for a quotation
Call or WhatsApp +91-7045922250 or email hsc@hindustanscale.com with the fraction (PM10 or PM2.5), your sampling duration and power source. Hindustan Scale Company, Mumbai, since 1955.
