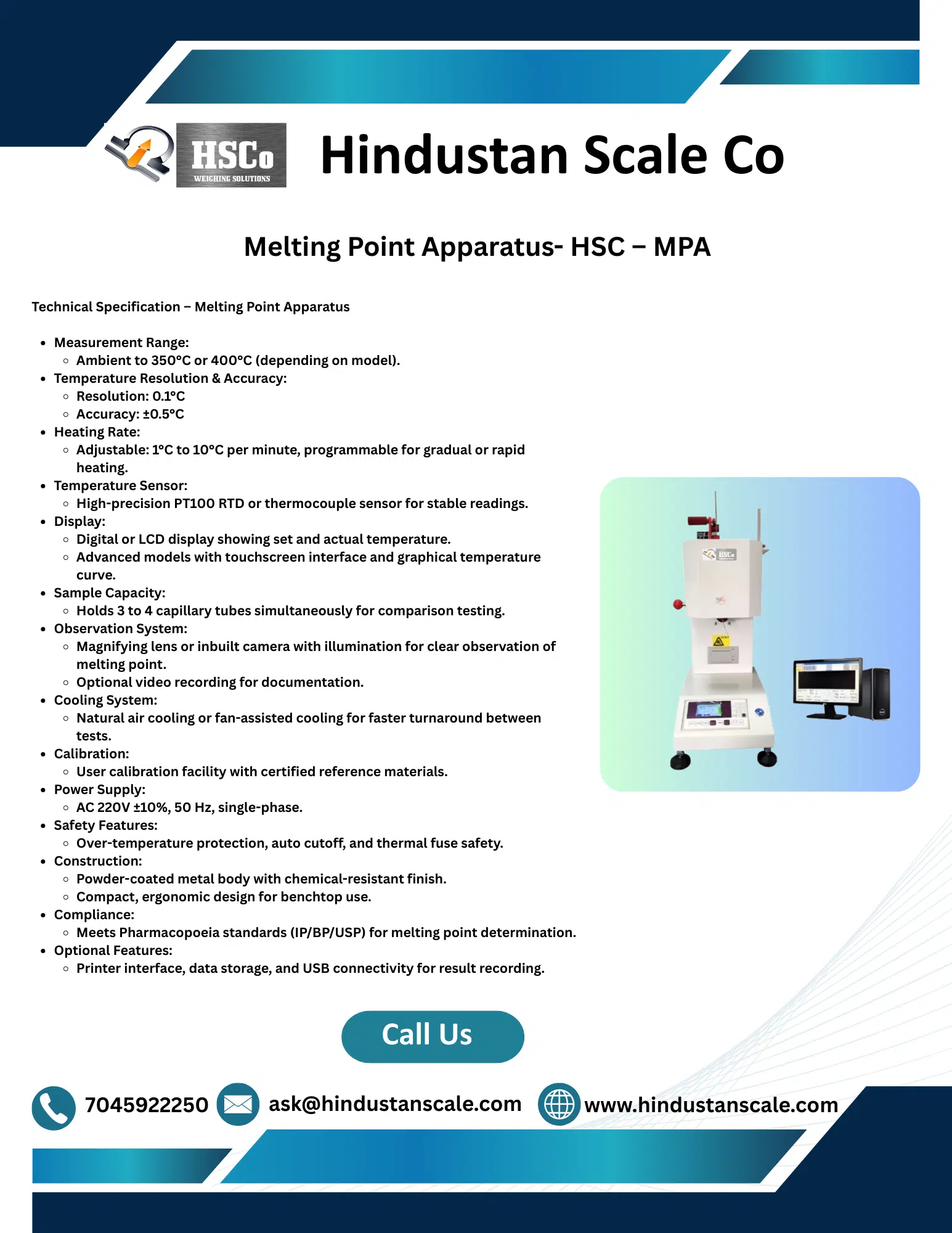

Melting Point Apparatus- HSC – MPA

HSC – Technical Specification – Melting Point Apparatus

1. Measurement Range:

   • Ambient to 350°C or 400°C (depending on model).

2. Temperature Resolution & Accuracy:

   • Resolution: 0.1°C

   • Accuracy: ±0.5°C

3. Heating Rate:

   • Adjustable: 1°C to 10°C per minute, programmable for gradual or rapid heating.

4. Temperature Sensor:

   • High-precision PT100 RTD or thermocouple sensor for stable readings.

5. Display:

   • Digital or LCD display showing set and actual temperature.

   • Advanced models with touchscreen interface and graphical temperature curve.

6. Sample Capacity:

   • Holds 3 to 4 capillary tubes simultaneously for comparison testing.

7. Observation System:

   • Magnifying lens or inbuilt camera with illumination for clear observation of melting point.

   • Optional video recording for documentation.

8. Cooling System:

   • Natural air cooling or fan-assisted cooling for faster turnaround between tests.

9. Calibration:

   • User calibration facility with certified reference materials.

10. Power Supply:

    • AC 220V ±10%, 50 Hz, single-phase.

11. Safety Features:

    • Over-temperature protection, auto cutoff, and thermal fuse safety.

12. Construction:

    • Powder-coated metal body with chemical-resistant finish.

    • Compact, ergonomic design for benchtop use.

13. Compliance:

    • Meets Pharmacopoeia standards (IP/BP/USP) for melting point determination.

14. Optional Features:

    • Printer interface, data storage, and USB connectivity for result recording.
