TECHNICAL FEATURES
GREEN DISPLAY
- Extra Bright Display for Easy Viewing
- Extra Large Display for Continuous Viewing
- Green LED for Longer Battery Life
- Wide angle display for viewing from all sides of the scale
- Anti-Heat Dissipating LED with One Year Warranty
- Decimal Point to indicate stability of the weight on the platter
Advanced Microprocessor
- High Density Microprocessor
- Water Resist PCB
- Piece Counting Function*
- Liter Conversion Facility*
- Very High internal Counts for Accurate Reading
- Advanced 16 bit Architecture
HEAVYDUTY LOADCELL
- Made of Pure Aluminium/Stainless Steel Composite
- Can Take up to 200% of its overload capacity
- Rust Resistant
- Water Resistant
- Extremely Durable – Has a life of up to 10 years*
- Advance Microelectronics for extremely Precise Measurements
durable battery
- Backup of 30* hours on a single charge
- High Density Power
- Fast Charge Enabled
- Long Battery Life
- Explosion/Swollen Resistant
- Leak Proof Batteries

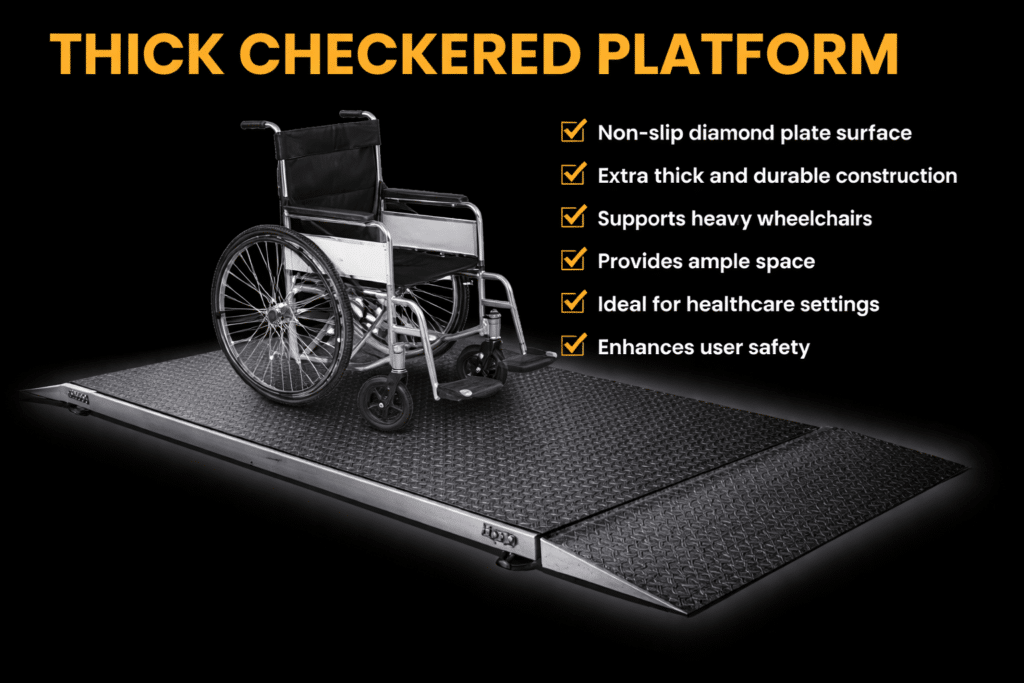

Thick Checkered Platform
Provides a non-slip surface, ensuring the user stays stable during weighing.
Made from durable materials to withstand heavy usage.
Designed with extra thickness for superior strength and longevity.
The checkered design helps maintain grip, preventing slippage.
Ideal for use in healthcare settings with high foot traffic.
Provides ample space to accommodate most wheelchair sizes and types.
Enhances safety for both the user and caregiver when performing the weighing process.
Transformer
- Facilitates energy transfer between circuits without requiring a direct electrical connection.
- Crafted using premium magnetic materials to minimize energy loss.
- Engineered for superior efficiency with reduced core and copper losses.
- Equipped with safety features such as overload protection, insulation, and grounding.
- Widely used in power plants, industrial settings, and electronic devices for voltage regulation.
- Ensures stable output voltage, preventing any unwanted fluctuations.
- Built for longevity with minimal maintenance and enhanced durability.
CUSTOMIZATION
RS232
- Voltage Levels: Uses +12V (Logic 0) and -12V (Logic 1) for signaling.
- Noise Margin: 2V noise margin ensures stable signals.
- Mark & Space: Indicates idle and active states in communication.
- Durable Design: Metal casing for secure connections.
- Common Use: Typically found in older devices like modems and printers.
BLUETOOTH CONNECTIVITY
- Wireless data transfer without cables.
- Remote monitoring of weight measurements in real-time.
- Seamless compatibility with mobile apps (Android/PC).
- Easy integration with other systems (e.g., inventory management).
- Effortless data logging and storage.
- Low power consumption for extended battery life.
- Increases efficiency in limited space environments.
USB CONNECTIVITY
- Direct data transfer to PC or laptop
- Compatible with data logging and reporting software
- Easy plug-and-play operation
- Supports quick export of weight records
- Reliable wired connection for stable communication
- Ideal for offices, labs, and industrial environments
EXTERNAL PRINTER
- Instant printout of weight data and reports
- Clear and legible thermal printing
- Easy connection with weighing scale system
- Ideal for billing, records, and documentation
- Fast printing for smooth workflow
- Suitable for industrial, retail, and warehouse use
POS INDICATOR
- Integrated POS display for real-time weight and price view
- Clear digital indication for operator and customer
- Supports billing and receipt-based operations
- Fast response for smooth checkout process
- Easy integration with POS systems and printers
- Ideal for retail counters and weighing applications
EXTRA DISPLAY UNIT
- Secondary display for clear remote viewing
- Jumbo LED digits for high visibility
- Ideal for customers and operators
- Supports long-distance weight indication
- Easy connection with main indicator
- Suitable for retail, industrial, and warehouse use
Jumbo Display
- Clear Readability: High-visibility red LED digits for easy viewing from a distance.
- Compact Design: Space-saving, suitable for environments with limited space.
- Durability: Built with sturdy materials for long-lasting performance.
- Easy Installation: Simple to set up, with multiple mounting options for flexible placement.
- Versatile Use: Ideal for applications like inventory management, digital signage, and counting.
- Low Power Consumption: Energy-efficient design ensures extended use without high energy costs.
RS-485 Pinout and Features
- Multi-Device Communication: Connect multiple devices on the same network.
- Differential Signaling: Ensures reliable data transmission over long distances.
- Extended Range: Supports up to 1200 meters in distance for communication.
- Compact Design: Easy integration with existing devices using standard DB9 connector.
- Low Power Consumption: Ideal for energy-efficient communication setups.
- Versatile Applications: Used in industrial, automotive, and network systems.
LED Buzzer
- Weight Monitoring: Connected to a weighing system to track weight capacity.
- Signal Indicators: Red (overload), Orange (warning), Green (safe zone).
- Auditory Warning: Buzzer activates when weight surpasses the set limit.
- Customizable Limits: Adjust weight thresholds to suit specific requirements.
- Clear Visibility: Easily seen from a distance for quick status monitoring.
- Safety Assurance: Protects against overloading, preventing potential damage or risk.
APPLICATIONS
PRODUCT DETAILS
- Manufacturer: Hindustan Scale Company

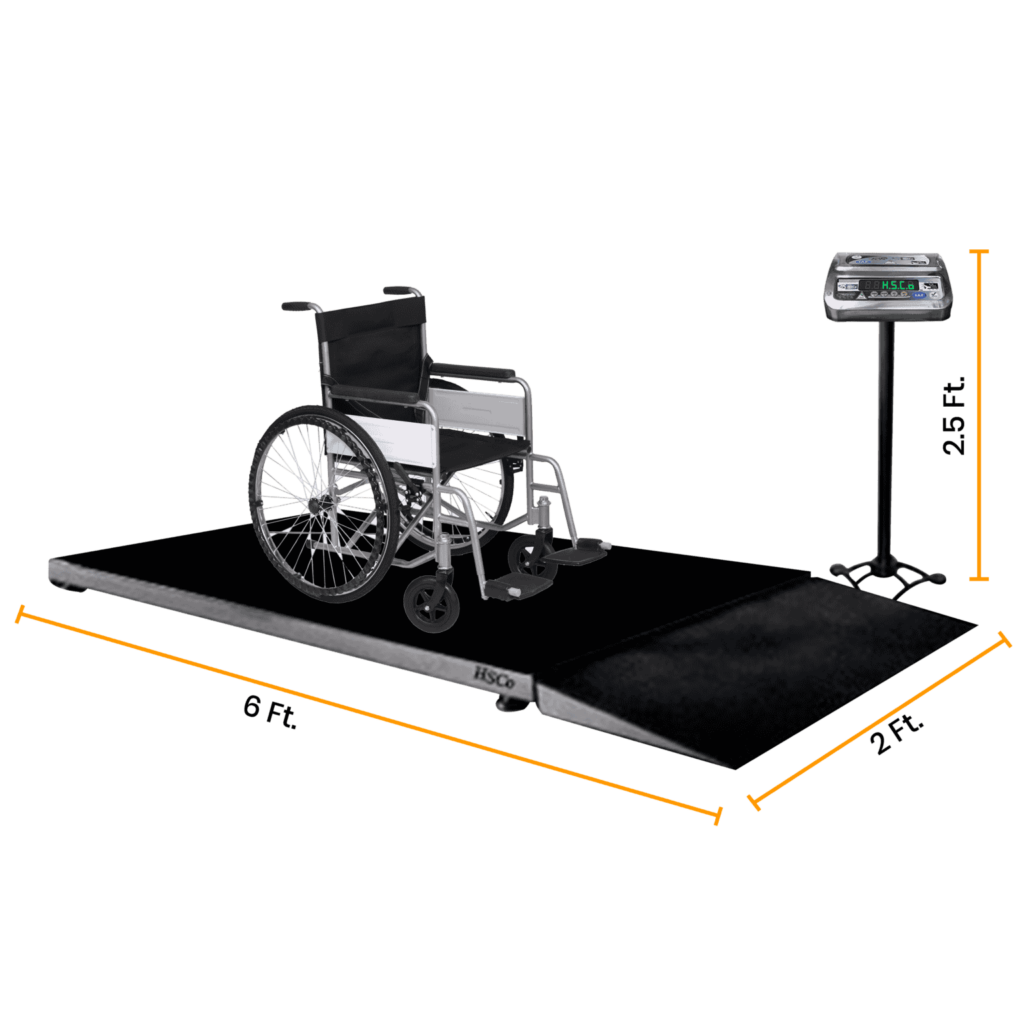

- Product Dimensions: 6*2*2.5 (in ft)
- Battery Life: 20 Hours+
- Dual Core Transformers
- Adjustable Legs for uneven Surfaces
- Moisture Resistant for all weather use
- Anti-Dust construction for even the harshest environment use
- Feather Touch Buttons for easy operation
- MADE IN INDIA
- ISO 9001:2015 certified Product
- Along with Government of India Stamping
- One Year Warranty
Video
OTHER DETAILS

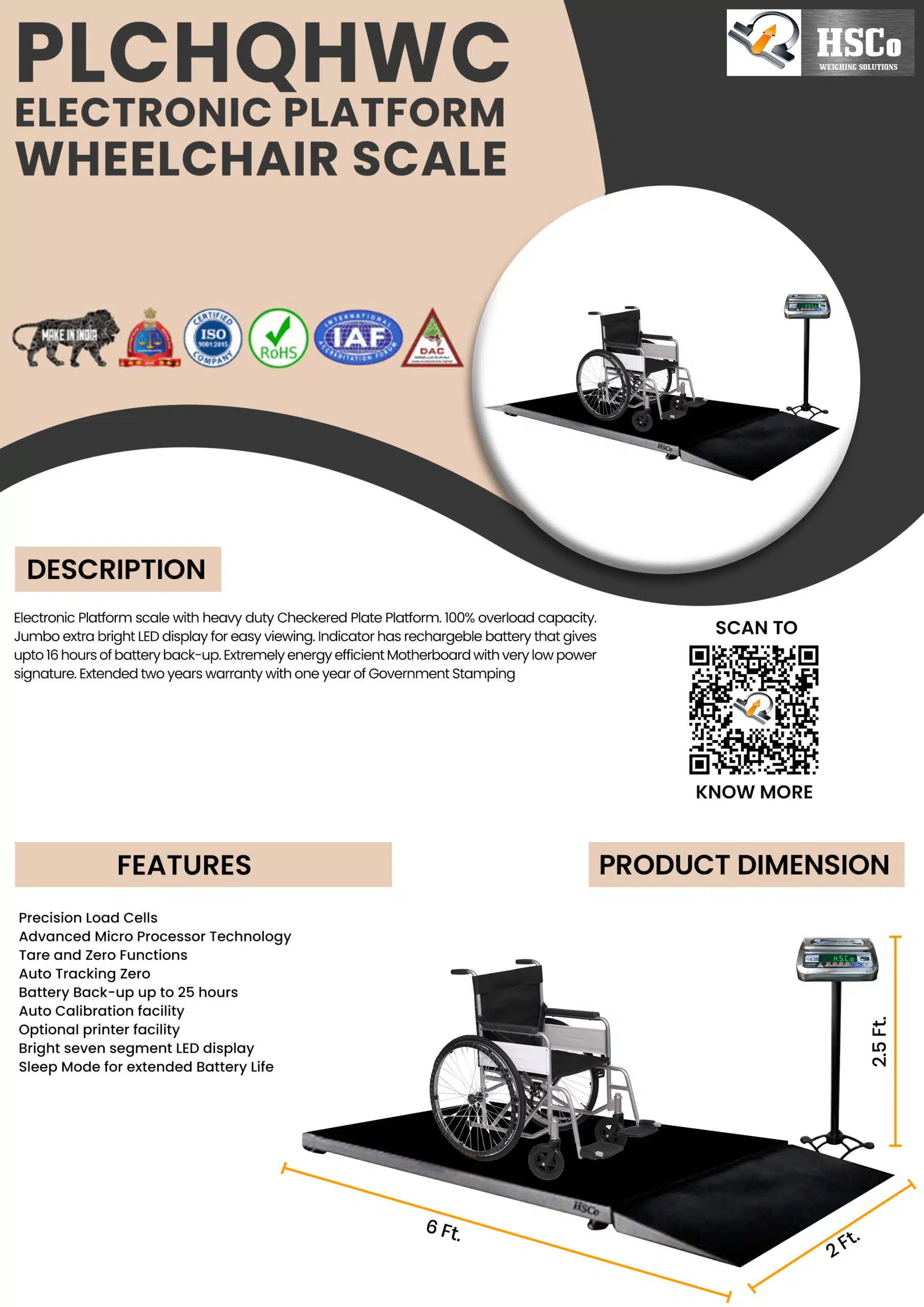

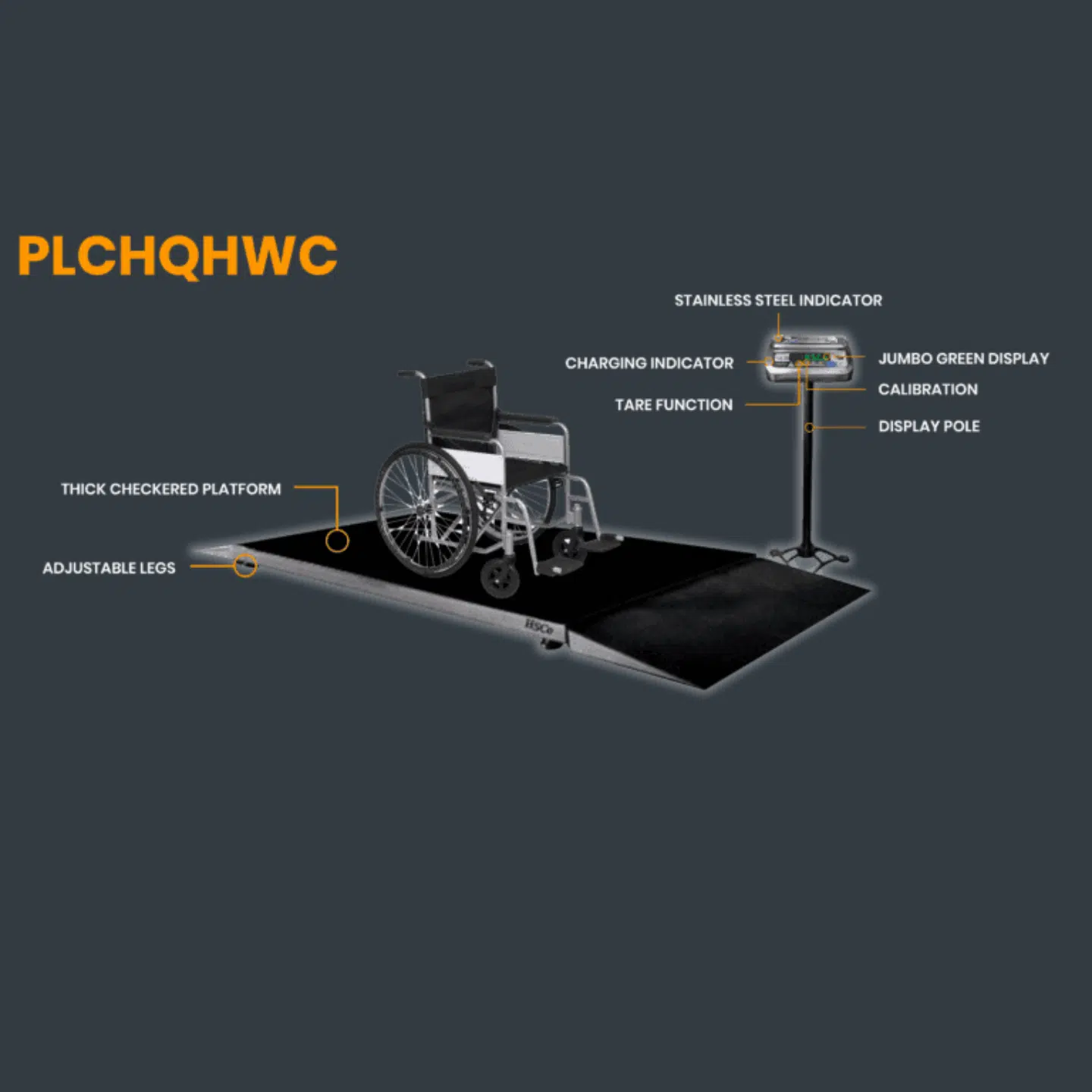

Electronic Platform Wheelchair Scale – Without Grill – PLCHQHWC
Electronic Platform scale with heavy duty Checkered Plate Platform. 100% overload capacity. Jumbo extra bright LED display for easy viewing. Indicator has rechargeble battery that gives upto 16 hours of battery back-up. Wheelchair Scale is extremely energy efficient Motherboard with very low power signature. Extended two years warranty with one year of Government Stamping.
FEATURES
- Precision Load Cells
- Advanced Micro Processor Technology
- Tare and Zero Functions
- Auto Tracking Zero
- Battery Back-up up to 25 hours
- Auto Calibration facility
- Optional printer facility
- Bright seven segment LED display
- Sleep Mode for extended Battery Life
TECHNICAL SPECIFICATION
- AC Operating Voltage – 230V, 50 Hz, 10%
- DC Operating Voltage -9 V, 1 Amp*
- Battery type – 6V, 6.5mAh
- Operating Temperature – 0 to 40 Celsius
- Auto Tracking Zero
- Auto Power Saving Feature
- Common Cathode/Anode Display
- 100% overload protection architecture
- Battery Back-up up to 25 hours
- Auto Calibration facility
- A to D converter with 40 pins programmable IC
- 32-bit expandable architecture with Advanced PLU logic systems
- Piece counting Function Available
- Digital overload indication with 100% tare functionality
- Ultra Powder coating body with 90+ micron
- Digital auto Calibration
- Optional Remote/Wi-Fi Display available.
- Sleep Mode for extended Battery Life
- Chequered Plate for extra ruggedness
- Printer output is Optional
FAQ
The scale uses precision load cells and advanced microprocessor technology to ensure highly accurate weight readings even with wheelchairs and mobility aids, reducing measurement errors common in traditional scales.
Yes — its heavy‑duty platform, overload protection architecture, and optional calibration functionality make it suitable for professional healthcare environments that require consistent and precise weighing performance.
The tare function allows medical professionals to subtract the weight of the wheelchair itself, giving the true body weight of the person quickly and accurately without manual calculations.
With up to 25 hours of battery backup, this scale can operate during power outages or in locations without constant mains power, ensuring uninterrupted weighing tasks for patient care.
Yes — available in 500 kg and 1000 kg capacity options, it can accommodate heavier wheelchair users and even larger power chairs without sacrificing accuracy.
Auto‑calibration automatically aligns the scale’s sensors over time, ensuring long‑term precision and stability of weight readings — critical in busy healthcare settings.
Its low‑power motherboard and sleep mode significantly reduce energy use, extending battery life and lowering operating costs in long‑term use.
Yes — the model supports an optional printer facility, allowing you to print weight slips or records directly, which is useful in clinical documentation workflows.
Designed to operate between 0 °C to 40 °C with overload protection and rugged build quality, it’s suitable for typical clinical and facility environments.
With its checkered heavy‑duty platform and optional ramp configurations, the wheelchair can be easily rolled onto the scale, providing barrier‑free weighing — an essential feature for mobility‑challenged patients.
